| Brand Name: | Hitachi |
| Model Number: | SP10Q010-T |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

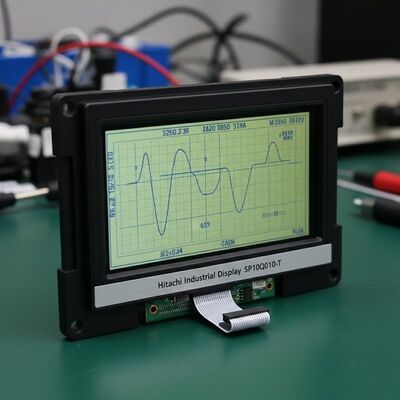

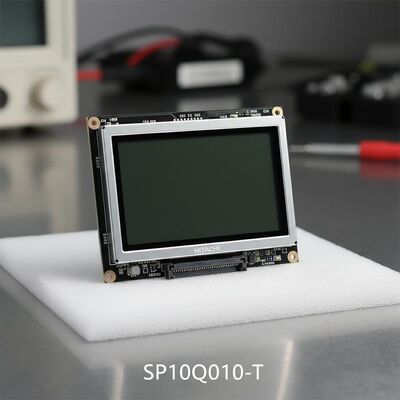

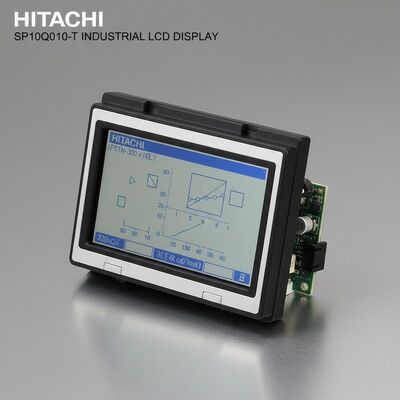

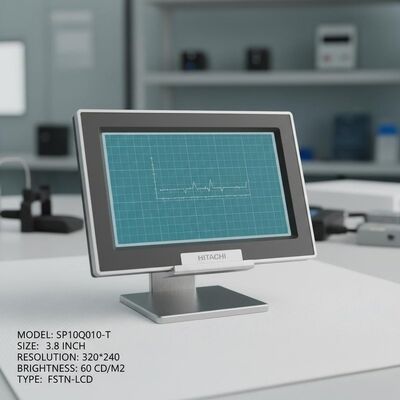

Hitachi 3.8inch Industrial LCD Display SP10Q010-T ,320*240 Pixels Panel 60CD/M2 20 Pin
Manufacturer
HITACHI
Model Name
SP10Q010-T
Screen Size
3.8 inch
Screen Type
LCM, FSTN-LCD
Pixel Number
320×240 (QVGA)
Arrangement
Rectangle
Active Area(mm)
76.79 × 57.59 (H×V)
Outline(mm)
94.7 × 73.3 × 6 (H×V×D)
Bezel Area(mm)
79.8 × 60.6 (H×V)
Treatment
-
Luminance
60 cd/m² (Typ.)
Contrast Ratio
5 : 1 (Typ.) (TM)
Viewing Angle
80 (Typ.)(CR≥2, Φ2-Φ1)
Response
150/350 (Typ.)(Tr/Td) ms
Good View at
6 o'clock
Work Mode
STN, Black/White (Positive), Transflective
Color Depth
Monochrome
Backlight
1S6P WLED , No Driver
Mass
-
Used for
Refresh Rate
75Hz
Touchscreen
Without
Signal Type
Parallel Data (4-bit) , FPC , 20 pins
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
The SP10Q010-T is a 3.8 inch diagonal FSTN-LCD display panel product from Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.2G (11.76 m/s²). It's general features are summarized by einklcd in the following: Transflective, WLED Backlight . Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q1, 2003 and last shippment on Q3, 2019, Now this model is in production. . We inputted this model's specification on Apr 12 2013 for the first time, and the latest update on Sep 5 2018. If you want to embed SP10Q010-T LCM in your future product, einklcd strongly recommend that you should contact with HITACHI or it's agent to learn lateast production and specification detail. The SP10Q010-T production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our sell products provided ONE year warranty! Free exchange !
All LCD products we sell was full test before delivery.
|
