Innolux 7 Inch Car LCD Display with 1024*600 Pixels 500CD/m2 Brightness and 40 Pin Connector

Name: Innolux 7 Inch Car LCD Display with 1024*600 Pixels 500CD/m2 Brightness and 40 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NJ070NA-23A
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	NJ070NA-23A
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*600

Brightness:

500cd

Connector:

Contrast Ratio:

800:1

Working Time:

20k Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

tft lcd display

Product Description

Innolux 40 Pin Car LCD Display 1024*600 Pixels NJ070NA-23A 7" 500CD/m² Brightness

Product Specifications

Manufacturer	Innolux	Model Name	NJ070NA-23A
Screen Size	7.0 inch	Screen Type	LCM, a-Si TFT-LCD
Pixel Number	1024(RGB)*600 (WSVGA)	Arrangement	RGB Vertical Stripe
Active Area	154.214 * 85.92 mm (H*V)	Outline Dimensions	164.9 * 100 * 5.1 mm (HVD)
Bezel Area	157.21 * 89.49 mm (H*V)	Treatment	Hard coating
Luminance	500 cd/m² (Typical)	Contrast Ratio	800:1 (Typical) (TM)
Viewing Angle	75/75/70/75 (Typical)(CR≥10)	Work Mode	TN, Normally White, Transmissive
Good View At	6 o'clock	Response Time	10/15 ms (Typical)(Tr/Td)
Color Depth	262K/16.7M	Backlight	WLED, 20K hours, No Driver
Mass	140g (Typical)	Touchscreen	Without
Refresh Rate	60Hz

Electrical Specifications

Signal Type	LVDS (1 ch, 6/8-bit), FPC, 40 pins
Voltage Supply	3.3/11/20/-6.8V (Typical)(DVDD/AVDD/VGH/VGL)
Temperature Ratings	Storage: -30°C to 80°C, Operating: -20°C to 70°C

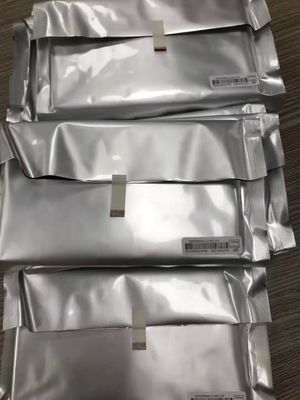

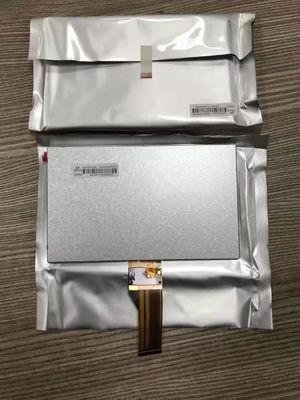

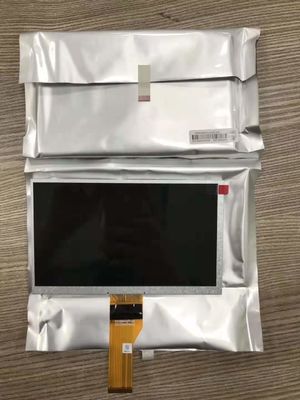

Product Images

Product Overview

The NJ070NA-23A is a 7.0-inch diagonal a-Si TFT-LCD display panel from Innolux Corporation featuring an integral WLED backlight system. This automotive-grade display operates within a temperature range of -20°C to 70°C and stores safely from -30°C to 80°C.

Key Features:

WLED Backlight with 20,000-hour lifespan
U/D, L/R Reverse functionality
6/8 bit color depth support
Built-in NT51008QH-D 3EA + NT52003BH 3EB driver IC
Ideal for automotive display applications

This model entered mass production in Q2 2017 and remains in active production. For integration into your products, we recommend contacting Innolux or their authorized agents for the latest production status and detailed specifications.
