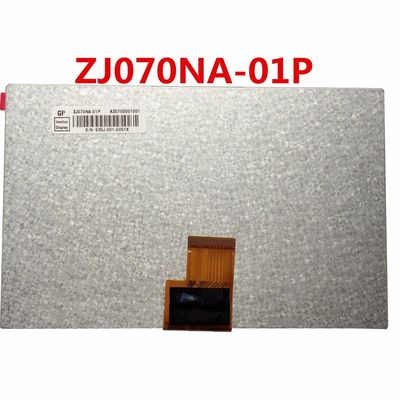

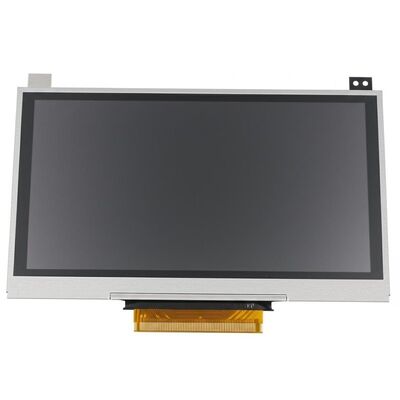

7 Inch 500 cd/m² 1024×600 Resolution Car LCD Display Automotive TFT-LCD Screen Monitor

Name: 7 Inch 500 cd/m² 1024×600 Resolution Car LCD Display Automotive TFT-LCD Screen Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: ZJ070NA-01P
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	ZJ070NA-01P
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*600

Brightness:

400cd

Connector:

Contrast Ratio:

700:1

Working Time:

15k Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

tft lcd display

Product Description

40 Pin Car Video Screen Monitor 7" 500CD/M² 1024*600 Pixels ZJ070NA-01P Innolux

Product Specifications

Panel Brand	Innolux
Panel Model	ZJ070NA-01P
Panel Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)*600, WSVGA
Pixel Format	RGB Vertical Stripe
Display Area	153.6(W)*90(H) mm
Bezel Opening	156.4(W)*92.8(H) mm
Outline Size	165.75(W)105.39(H)5.1(D) mm
Surface	Glare (Haze 0%)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View	6 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 70% NTSC
Lamp Type	WLED, 15K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	156g
Application	Automotive display
Signal Interface	LVDS (1 ch, 6/8-bit), 40 pins, FPC
Input Voltage	3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL)
Operating Temperature	-30 ~ 80 °C
Storage Temperature	-30 ~ 80 °C

Key Features

Glare Surface for enhanced visibility
6/8 bit Selectable color depth
Landscape orientation design
Wide Temperature operation range
White LED Backlight with 15,000 hour lifespan
Wide Aspect Ratio display
U/D,L/R Reverse capability

Product Overview

The Innolux Corporation ZJ070NA-01P is a 7.0-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system. This automotive-grade display operates within a wide temperature range of -30°C to 80°C and is designed for reliable performance in vehicle applications. Originally entering mass production in Q2 2013, this model remains in current production. Einklcd recommends this display specifically for automotive display systems and advises contacting Innolux or their distributors for the latest production and specification details.

Note: The production status information provided on einklcd.com is for reference only and should not be used as the sole basis for decision-making. Always verify current specifications with the manufacturer.
