AUO 17" Industrial LCD Display with 1280*1024 Pixels 380CD/M2 Brightness and 30 Pin Connector

Brand Name:	auo
Model Number:	G170EG01 V.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*1024

Brightness:

380cd

Connector:

Contrast Ratio:

1000:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

industrial computer monitor

industrial panel pc touch screen

Product Description

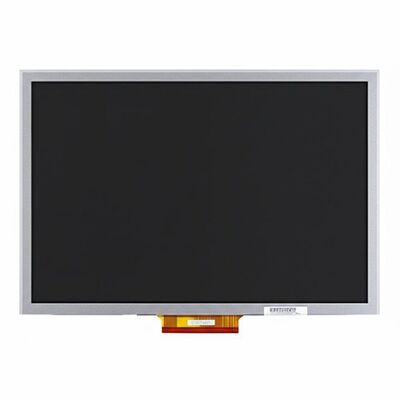

17" Industrial Touch Screen Display - AUO G170EG01 V0

Product Overview

High-performance 17-inch industrial TFT-LCD display panel with 1280*1024 resolution, featuring robust construction and reliable operation for demanding industrial applications.

Key Specifications

Panel Brand	AU Optronics Corp. (AUO)
Panel Model	G170EG01 V0
Panel Size	17.0 inches
Resolution	1280(RGB)*1024 (SXGA)
Display Area	337.92mm * 270.336mm
Brightness	380 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	85/85/80/80 (CR≥10)
Display Colors	16.7M (72% NTSC)

Technical Details

Panel Type	a-Si TFT-LCD, LCM
Pixel Format	RGB Vertical Stripe
Display Mode	TN, Normally White, Transmissive
Response Time	3.5/1.5 ms (Tr/Td)
Signal Interface	LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage	5.0V (Typical)
Backlight System	4 pcs CCFL, 50K hours lifespan
Touch Screen	Without

Environmental Specifications

Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Vibration Level	1.5G (14.7 m/s²) maximum

Key Features

Antiglare surface with hard coating (3H hardness)
Wide viewing angle for optimal visibility
Landscape orientation design
Extended CCFL backlight life (≥50,000 hours)
TCO'03 compliance for environmental standards
Robust construction for industrial environments

Application Recommendations

This display model is specifically recommended for industrial applications requiring reliable performance in demanding conditions.

Important Notice

This model (G170EG01 V0) entered mass production in Q4 2009 with last shipment in Q1 2015 and is currently discontinued. For integration into future products, we strongly recommend contacting AUO or their authorized agents for the latest production status and specifications. The information provided is for reference only and should not be used as the sole basis for decision-making.
