NLT 15" Industrial LCD Display with 1024*768 Pixels 400CD/M2 Brightness and 20 Pin Connector

Name: NLT 15" Industrial LCD Display with 1024*768 Pixels 400CD/M2 Brightness and 20 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NLB150XG01L-01
Price: 43.00 USD
Availability: InStock

Brand Name:	NLT
Model Number:	NLB150XG01L-01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

400cd

Connector:

Contrast Ratio:

600:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

industrial computer monitor

industrial panel pc touch screen

Product Description

NLT 15" 20 Pin Industrial LCD Display 1024*768 Pixels 400CD/M² NLB150XG01L-01

Product Overview

High-performance 15-inch industrial LCD display module designed for demanding applications requiring reliable operation and excellent visual clarity.

Technical Specifications

Brand	NLT
Model	NLB150XG01L-01
Diagonal Size	15.0 inch
Display Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)*768 (XGA)
Active Area	304.128(H)*228.096(V) mm
Outline Dimensions	326.5(H)253.5(V)12.1(D) mm
Surface Treatment	Antiglare, Hard coating (3H)
Brightness	400 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Direction	6 o'clock
Response Time	3/5 ms (Typical)(Tr/Td)
Viewing Angle	80/80/80/80 (CR≥10)
Operating Mode	TN, Normally White, Transmissive
Color Support	262K/16.7M, 60% NTSC
Backlight	WLED, 50K hours lifespan, With LED Driver
Weight	1.00/1.05 kgs (Typical/Maximum)
Interface	20 pins LVDS (1 ch, 6/8-bit), Connector
Power Supply	3.3V (Typical)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Key Features

Industrial-grade construction for reliable performance
High brightness 400 cd/m² for clear visibility
Wide operating temperature range (-20°C to 70°C)
Long-life WLED backlight with 50,000 hours lifespan
Anti-glare hard coating (3H) for durability
LVDS interface with 20-pin connector

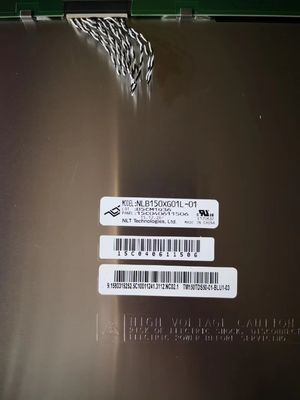

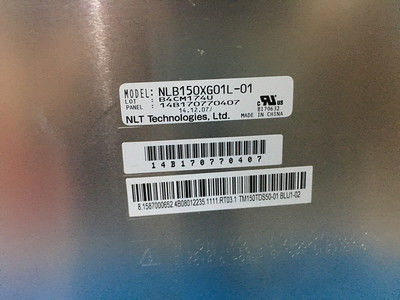

Product Images
