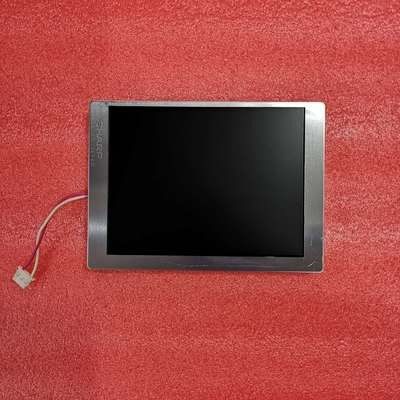

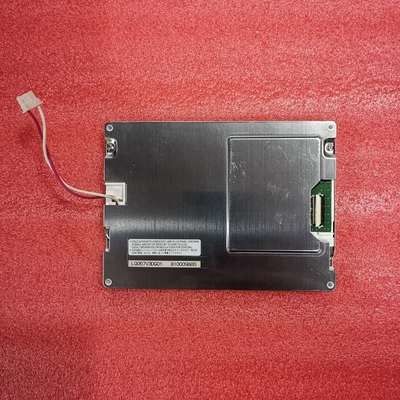

Panel Brand

Sharp

Panel Model

LQ057V3DG01

Panel Size

5.7"

Panel Type

a-Si TFT-LCD, LCM

Resolution

640(RGB)×480 , VGA

Pixel Format

RGB Vertical Stripe

Display Area

115.2(W)×86.4(H) mm

Bezel Opening

121.0(W)×92.2(H) mm

Outline Size

144(W)×104.6(H) ×13.5(D) mm

Surface

Antiglare

Brightness

400 cd/m² (Typ.)

Contrast Ratio

600:1 (Typ.) (TM)

Viewing Angle

80/80/80/70 (Typ.)(CR≥5)

Display Mode

TN, Normally White, Transmissive

Best View on

12 o'clock

Response Time

8/21 (Typ.)(Tr/Td)

Display Colors

262K

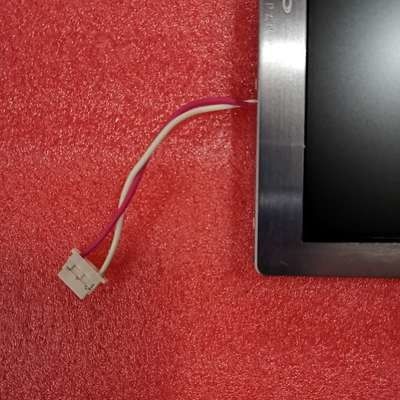

Lamp Type

1 pcs CCFL , 50K hours , Without Driver

Frequency

-

Touch Screen

Without

Panel Weight

250g (Max.)

Application

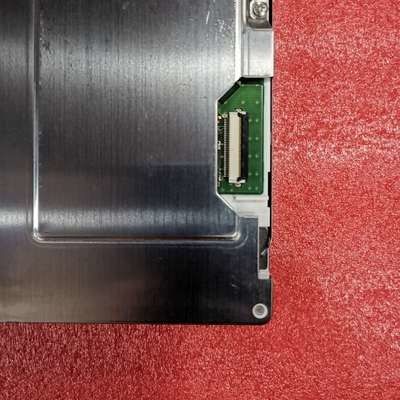

Signal Interface

Parallel RGB (1 ch, 6-bit) , 33 pins , Connector

Input Voltage

3.3V (Typ.)(VCC)

Environment

Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

Sharp Corporation (hereafter called Sharp) LQ057V3DG01 is a 5.7 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by einklcd in the following: Antiglare Surface, Wide Viewing Angle, Landscape type, Wide Temperature, Lamp life ≥ 50K hours, U/D,L/R Reverse , Strong LCD2. Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q3, 2006 and last shippment on Q3, 2014, Now this model is discontinued. We inputted this model's specification on Jun 12 2012 for the first time, and the latest update on Aug 9 2018. If you want to embed LQ057V3DG01 LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's distributor to learn lateast production and specification detail. The LQ057V3DG01 production status marked on einklcdk.com is for reference only and should not be used as the basis for the user's decision making.
