Sharp 5.7 Inch Industrial LCD Display with 400 cd/m² Brightness and 600:1 Contrast Ratio

Name: Sharp 5.7 Inch Industrial LCD Display with 400 cd/m² Brightness and 600:1 Contrast Ratio
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ057V3DG01
Price: 43.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LQ057V3DG01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 480*640

Brightness:

400cd

Connector:

Contrast Ratio:

600:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

industrial computer monitor

industrial panel pc touch screen

Product Description

Sharp 5.7" Industrial Display Monitor

High Brightness LCD Display Model LQ057V3DG01

Technical Specifications

Panel Brand Sharp

Panel Model LQ057V3DG01

Panel Size 5.7"

Panel Type a-Si TFT-LCD, LCM

Resolution 640*480 (VGA)

Pixel Format RGB Vertical Stripe

Display Area 115.2*86.4 mm

Brightness 400 cd/m²

Contrast Ratio 600:1

Viewing Angle 80/80/80/70

Response Time 8/21 ms (Tr/Td)

Display Colors 262K

Backlight 1 CCFL, 50K hours

Input Voltage 3.3V

Operating Temperature -30°C to 80°C

Vibration Level 2.0G (19.6 m/s²)

Key Features

Antiglare Surface Treatment
Wide Viewing Angle Performance
Landscape Orientation
Wide Operating Temperature Range
Extended Backlight Life (≥50,000 hours)
U/D, L/R Reverse Capability
Strong LCD Construction

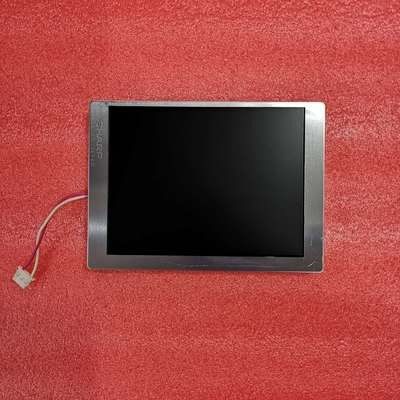

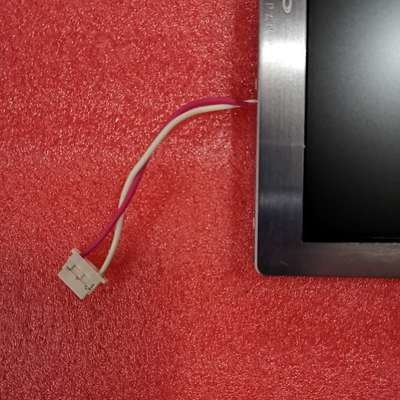

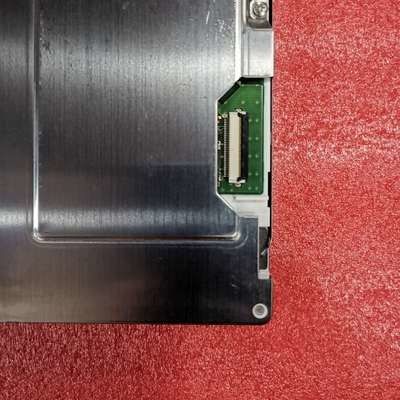

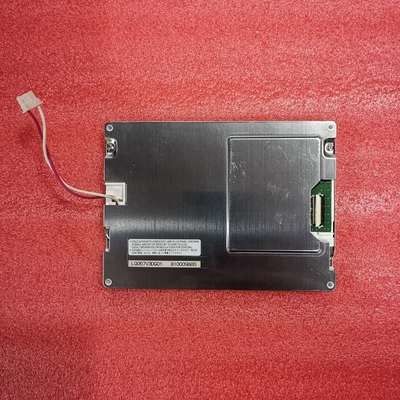

Product Images

Product Overview

The Sharp LQ057V3DG01 is a 5.7-inch diagonal a-Si TFT-LCD display panel with integrated CCFL backlight system, designed specifically for industrial applications requiring reliable performance in demanding environments.

Important Notice: This model entered mass production in Q3 2006 with final shipments in Q3 2014. The LQ057V3DG01 is currently discontinued. For integration into new products, we strongly recommend contacting Sharp or their authorized distributors for the latest production status and specifications.
