CPT 10.2 inch Car LCD Display with 1024×600 Resolution and 400 cd/m² Brightness

Name: CPT 10.2 inch Car LCD Display with 1024×600 Resolution and 400 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: CLAA102NA0DCW
Price: 30.00 USD
Availability: InStock

Brand Name:	CPT
Model Number:	CLAA102NA0DCW
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*600

Brightness:

400cd

Connector:

Contrast Ratio:

400:1

Working Time:

2k Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

tft lcd display

Product Description

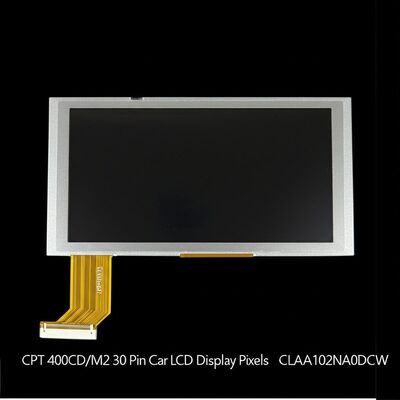

CPT 400CD/M2 30 Pin Car LCD Display CPT 10.2" 1024*600 Pixels CLAA102NA0DCW

Product Overview

The CLAA102NA0DCW is a 10.2-inch diagonal a-Si TFT-LCD display panel from Chunghwa Picture Tubes, LTD. (CPT) featuring an integrated WLED backlight system with LED driver. This automotive-grade display is designed for reliable performance in demanding environments.

Technical Specifications

Panel Brand	CPT
Panel Model	CLAA102NA0DCW
Panel Size	10.2"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)*600, WSVGA
Pixel Format	RGB Vertical Stripe
Display Area	222.72(W)*130.5(H) mm
Bezel Opening	225.90(W)*134.2(H) mm
Outline Size	235(W)145.8(H)5.5(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View	6 o'clock
Response Time	20 ms (Typ.)(Tr+Td)
Display Colors	262K 50% (CIE1931)
Lamp Type	WLED, 2K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	250g (Typ.)
Signal Interface	LVDS (1 ch, 6-bit), 30 pins, Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C
Vibration Level	2.9G (28.4 m/s²)

Key Features

Antiglare Surface with Hard Coating (3H)
Landscape Orientation
3G Vibration Resistance
White LED Backlight System
Wide Aspect Ratio
Automotive Grade Construction

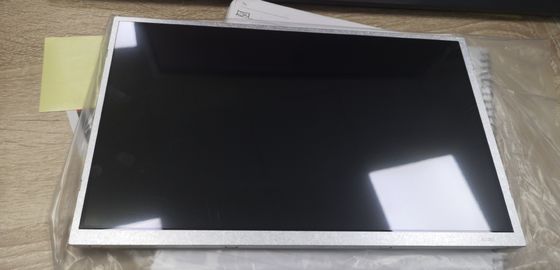

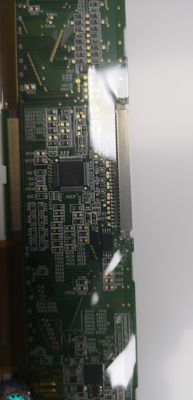

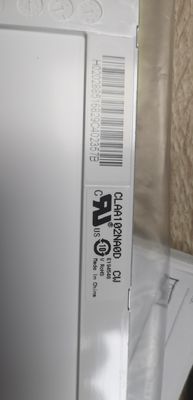

Product Images

Application & Status

This display model is specifically designed for automotive display applications. Mass production began in Q3 2010 with final shipments in Q3 2015. The product is currently discontinued.

Important Notice: The production status information provided is for reference only and should not be used as the sole basis for decision-making. We strongly recommend contacting CPT or their authorized agents for the latest production and specification details before integrating this model into your products.
