NL8048BC19-02C Industrial LCD Display , 800*480 Lcd Touch Screen Panel 550CD/M2 20 Pin

NL8048BC19-02C Industrial LCD Display , 800*480 Lcd Touch Screen Panel 550CD/M2 20 Pin

Brand Name: NEC
Model Number: NL8048BC19-02C
MOQ: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Payment Terms: T/T,W, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7m Colors
Model:
WLED
Style:
Wide Screen High Resolution 800*480
Brightness:
550cd
Connector:
20
Contrast Ratio:
800:1
Working Time:
50k Hours
Supply Ability:
3000pcs per week
Highlight:

industrial computer monitor

,

industrial panel pc touch screen

Product Description
  • Brand
    NEC
  • Model
    NL8048BC19-02C
  • Diagonal Size
    7.0 inch
  • Type
    a-Si TFT-LCD, LCM
  • Pixel Format
    800(RGB)×480 [WVGA]
  • Configuration
    RGB Vertical Stripe
  • Active Area
    152.4(H)×91.44(V) mm
  • Outline Dim.
    170(H)×111(V) ×9(D) mm
  • Bezel Area
    154.4(H)×93.5(V) mm
  • Treatment
    Clear, Hard coating (2H), Antireflection
  • Luminance
    550 cd/m² (Typ.)
  • Contrast Ratio
    800:1 (Typ.) (TM)
  • View Direction
    6 o'clock
  • Response Time
    3/15 (Typ.)(Tr/Td)
  • Viewing Angle
    80/80/80/80 (Typ.)(CR≥10)
  • Operating Mode
    TN, Normally White, Transmissive
  • Support Color
    262K/16.7M 60% (CIE1931)
  • Light Source
    WLED [3 strings] , 50K hours , W/O Driver
  • Weight
    170/180g (Typ./Max.)
  • Designed For
    NL8048BC19-02C Industrial LCD Display , 800*480 Lcd Touch Screen Panel 550CD/M2 20 Pin 0
  • Frame Rate
    60Hz
  • Touch Panel
    Without
  • Interface Type
  • 20 pins LVDS (1 ch, 6/8-bit) , Connector
  • Power Supply
  • 3.3V (Typ.)
  • Environment
  • Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

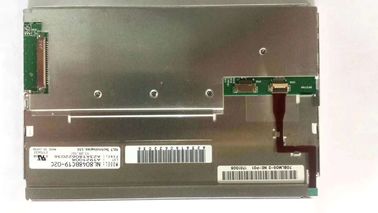

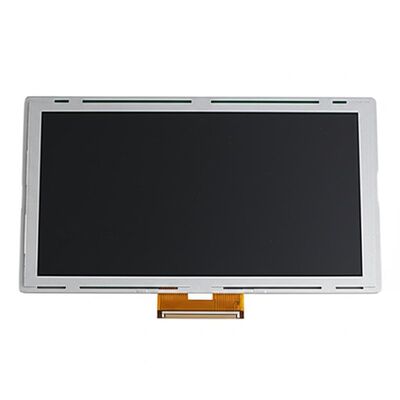

NL8048BC19-02C Industrial LCD Display , 800*480 Lcd Touch Screen Panel 550CD/M2 20 Pin 1NL8048BC19-02C Industrial LCD Display , 800*480 Lcd Touch Screen Panel 550CD/M2 20 Pin 2

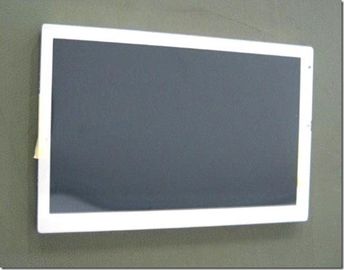

NEC LCD Technologies, Ltd. (hereafter called NEC) NL8048BC19-02C is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized by Einklcd in the following: 6/8 bit Selectable, Wide Viewing Angle, Landscape type, Hight Brightness, Lamp Repaceable, White LED Backlight, Lamp life ≥ 50K hours, Wide Aspect Ratio, 180 Reverse , T-EVT. Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q4, 2008, Now this model is discontinued. We inputted this model's specification on Dec 25 2012 for the first time, and the latest update on May 31 2019. If you want to embed NL8048BC19-02C LCM in your future product, einklcd strongly recommend that you should contact with NEC or it's distributor to learn lateast production and specification detail. The NL8048BC19-02C production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
