NEC NL8048BC19-02C Industrial LCD Display with 800*480 Resolution 550CD/M2 Brightness and 20 Pin Connector

NEC NL8048BC19-02C Industrial LCD Display with 800*480 Resolution 550CD/M2 Brightness and 20 Pin Connector

NEC NL8048BC19-02C Industrial LCD Display with 800*480 Resolution 550CD/M2 Brightness and 20 Pin Connector

Brand Name: NEC
Model Number: NL8048BC19-02C
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7m Colors
Model:
WLED
Style:
Wide Screen High Resolution 800*480
Brightness:
550cd
Connector:
20
Contrast Ratio:
800:1
Working Time:
50k Hours
Packaging Details:
Industrial packing
Highlight:

industrial computer monitor

,

industrial panel pc touch screen

Product Description
NL8048BC19-02C Industrial LCD Display
Product Overview
7.0-inch diagonal TFT-LCD display panel with 800*480 WVGA resolution, featuring high brightness of 550 cd/m² and industrial-grade durability.
Technical Specifications
Manufacturer NEC
Model NL8048BC19-02C
Display Type a-Si TFT-LCD, LCM
Screen Size 7.0 inch diagonal
Resolution 800(RGB)*480 (WVGA)
Pixel Configuration RGB Vertical Stripe
Active Area 152.4(H) * 91.44(V) mm
Outline Dimensions 170(H) * 111(V) * 9(D) mm
Bezel Area 154.4(H) * 93.5(V) mm
Surface Treatment Clear, Hard coating (2H), Antireflection
Brightness 550 cd/m² (Typical)
Contrast Ratio 800:1 (Typical)
Viewing Direction 6 o'clock
Response Time 3/15 ms (Typical, Tr/Td)
Viewing Angle 80/80/80/80 (Typical, CR≥10)
Operating Mode TN, Normally White, Transmissive
Color Support 262K/16.7M 60% (CIE1931)
Backlight WLED [3 strings], 50K hours lifespan, Without Driver
Weight 170/180g (Typical/Maximum)
Frame Rate 60Hz
Touch Panel Without
Interface 20 pins LVDS (1 channel, 6/8-bit), Connector
Power Supply 3.3V (Typical)
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Vibration Level 2.0G (19.6 m/s²)
Key Features
  • 6/8-bit selectable interface
  • Wide viewing angle performance
  • Landscape orientation design
  • High brightness display (550 cd/m²)
  • Replaceable LED backlight system
  • White LED backlight with 50,000+ hours lifespan
  • Wide aspect ratio format
  • 180-degree reverse capability
  • T-EVT technology implementation
Product Images

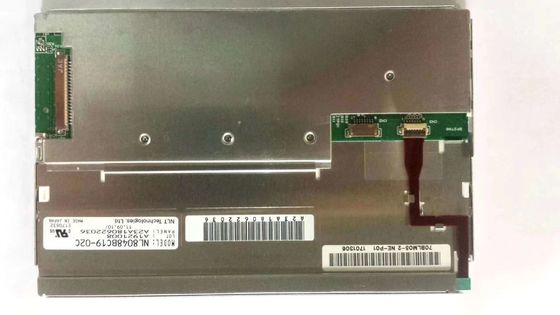

NEC NL8048BC19-02C Industrial LCD Display with 800*480 Resolution 550CD/M2 Brightness and 20 Pin Connector 0

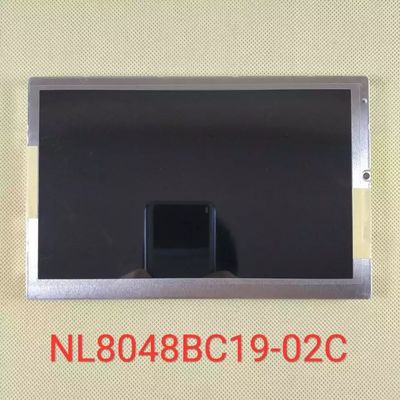

NEC NL8048BC19-02C Industrial LCD Display with 800*480 Resolution 550CD/M2 Brightness and 20 Pin Connector 1
Application Recommendations
This industrial-grade LCD display is specifically designed for demanding industrial applications requiring reliable performance in challenging environmental conditions.
Important Notice: This model entered mass production in Q4 2008 and is currently discontinued. For integration into new products, we strongly recommend contacting NEC or their authorized distributors for the latest production status and specifications.
The product status information provided is for reference purposes only and should not be used as the sole basis for decision-making. Specifications were last updated on May 31, 2019.
