CMO 10.4 Inch Automotive LCD Display with 640*480 Resolution and 450 cd/m² Brightness Industrial Screen

Name: CMO 10.4 Inch Automotive LCD Display with 640*480 Resolution and 450 cd/m² Brightness Industrial Screen
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G104V1-T01
Price: 30.00 USD
Availability: InStock

Brand Name:	CMO
Model Number:	G104V1-T01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 640*480

Brightness:

450cd

Connector:

31PIN

Contrast Ratio:

1500:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

tft lcd display

Product Description

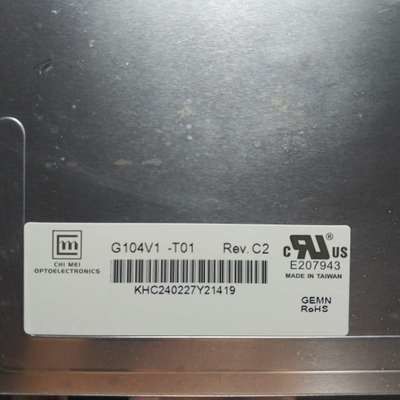

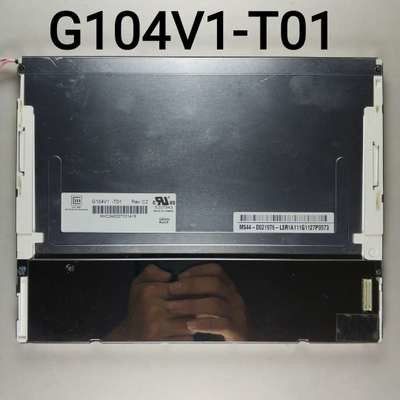

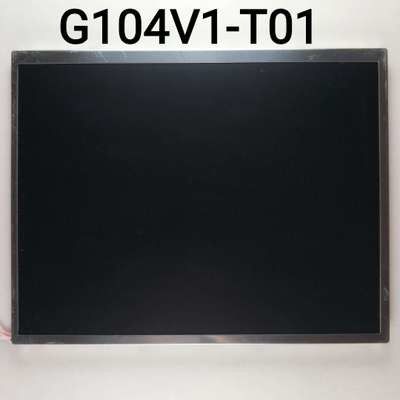

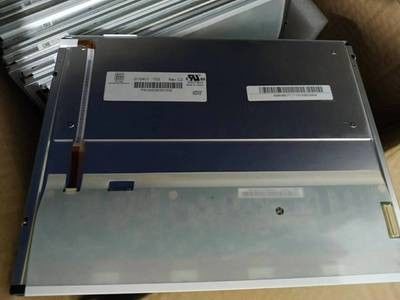

CMO 10.4" Automotive Display Industrial LCD Module

High-performance 10.4-inch TFT-LCD display module designed for automotive and industrial applications, featuring VGA resolution and wide viewing angles.

Key Specifications

Manufacturer: CMO

Model: G104V1-T01

Screen Size: 10.4 inch

Resolution: 640*480 (VGA)

Brightness: 450 cd/m²

Contrast Ratio: 1500:1

Viewing Angle: 88/88/88/88

Operating Temp: -20°C to 70°C

Technical Features

Screen Type: a-Si TFT-LCD with Super MVA technology
Color Depth: 262K colors
Response Time: 14/9 ms (Tr/Td)
Refresh Rate: 60Hz
Signal Type: CMOS/TTL (1 channel, 6-bit)
Connector: 31-pin interface
Voltage Supply: 3.3V/5.0V

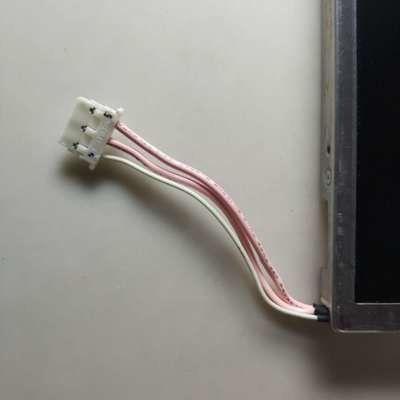

Backlight: 2 CCFL lamps with 50,000 hours lifespan
Surface Treatment: Antiglare with 3H hard coating
Touchscreen: Not included

Physical Dimensions

Parameter	Value
Active Area	211.2 * 158.4 mm (H*V)
Outline Dimensions	225.5 * 176.3 * 10 mm (HVD)
Bezel Area	215.4 * 161.8 mm (H*V)
Weight	470g (Typical)
