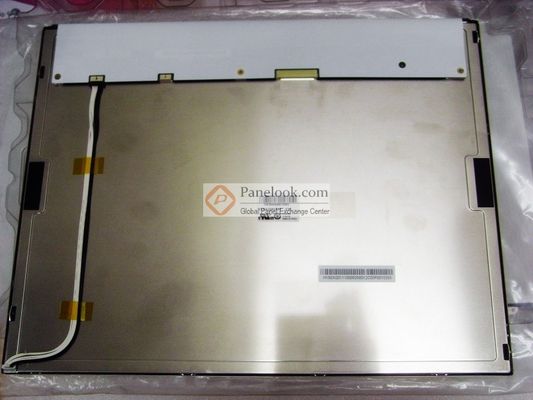

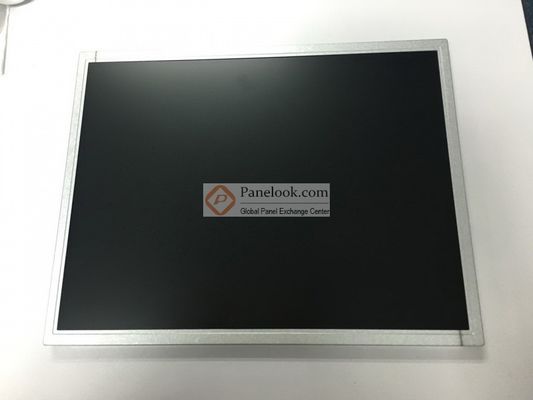

450cd/m2 Brightness 1024*768 Pixels 20 Pin Connector Industrial LCD Display TFT-LCD Panel

450cd/m2 Brightness 1024*768 Pixels 20 Pin Connector Industrial LCD Display TFT-LCD Panel

450cd/m2 Brightness 1024*768 Pixels 20 Pin Connector Industrial LCD Display TFT-LCD Panel

Brand Name:	CPT
Model Number:	CLAA150XQ01CW
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

450cd

Connector:

20

Contrast Ratio:

600:1

Working Time:

70k Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

,

industrial computer monitor

Product Description

450CD/M2 20 Pin Industrial LCD Display 1024*768 Pixels CLAA150XQ01CW CPT 15"

Product Overview

Brand CPT

Model CLAA150XQ01CW

Diagonal Size 15.0 inch

Display Type a-Si TFT-LCD, LCM

Display Specifications

Specification	Value
Pixel Format	1024(RGB)*768 [XGA]
Pixel Configuration	RGB Vertical Stripe
Active Area	304.128(H)*228.096(V) mm
Outline Dimensions	326.5(H)253.5(V)11.5(D) mm
Bezel Area	307.4(H)*231.3(V) mm
Surface Treatment	Hard coating (3H)
Luminance	450 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Color Support	16.7M 63% (CIE1931)
Frame Rate	60Hz
Touch Panel	Without

Electrical & Interface Specifications

Interface Type 20 pins LVDS (1 ch, 8-bit), Connector

Power Supply 3.3V (Typ.)

Light Source WLED [8S2P], 70K hours, With LED Driver

Weight 870g (Typ.)

Environmental Specifications

Operating Temperature -30°C to 80°C

Storage Temperature -30°C to 80°C

450cd/m2 Brightness 1024*768 Pixels 20 Pin Connector Industrial LCD Display TFT-LCD Panel 0
