Innolux 10.2 inch LCD Display with 800*480 Resolution and 350cd/m2 Brightness for Car Applications

Brand Name:	innolux
Model Number:	AT102TN03 V8
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 800*480

Brightness:

350cd

Connector:

60PIN

Contrast Ratio:

300:1

Working Time:

20k Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

tft lcd display

Product Description

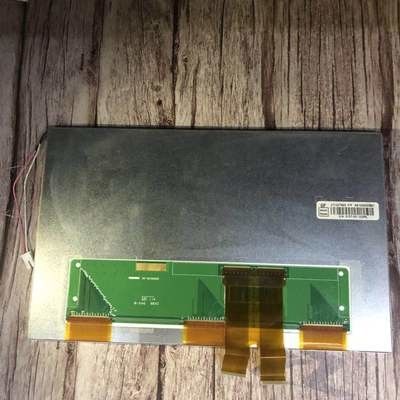

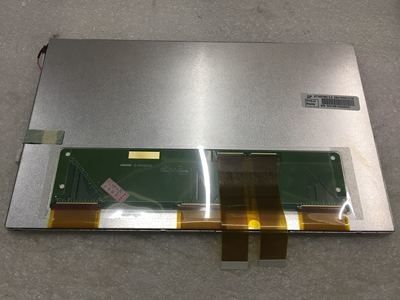

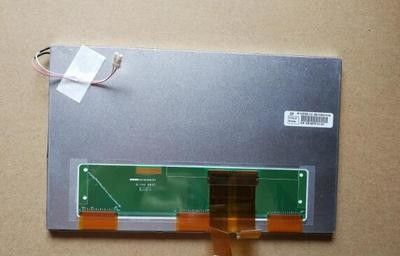

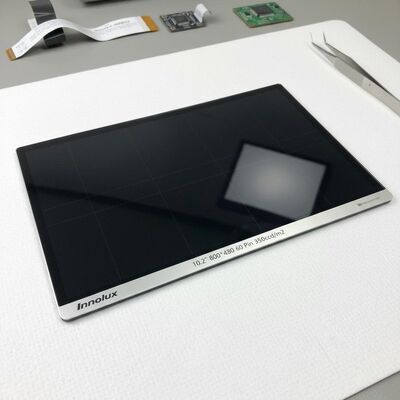

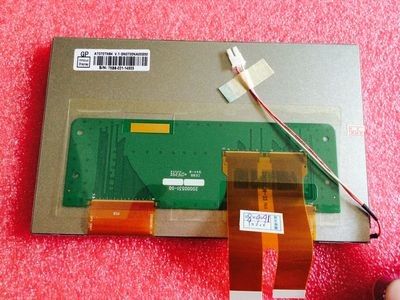

Innolux AT102TN03 V.8 10.2" LCD Display Screen

High-quality 10.2-inch TFT-LCD display module from Innolux featuring 800*480 WVGA resolution, 350 cd/m² brightness, and 60-pin interface connectivity.

Technical Specifications

Manufacturer & Model	Innolux AT102TN03 V.8
Screen Size	10.2 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	800(RGB)*480 (WVGA)
Pixel Arrangement	RGB Vertical Stripe
Active Area	222 * 132.48 mm (H*V)
Outline Dimensions	235 * 145.8 * 6.4 mm (HVD)
Bezel Area	225.3 * 135.7 mm (H*V)
Surface Treatment	Antiglare
Brightness	350 cd/m² (Typical)
Contrast Ratio	300:1 (Typical)
Viewing Angle	65/65/45/65 (Typical, CR≥10)
Response Time	15/20 ms (Typical, Tr/Td)
Optimal Viewing	6 o'clock position
Display Mode	TN, Normally White, Transmissive
Color Depth	262K 50% (CIE1931)
Backlight System	3S10P WLED, 20K hours lifespan, No Driver
Weight	332g (Typical)
Refresh Rate	60Hz
Touchscreen	Without touch capability
Signal Interface	TTL (1 channel, 6-bit), FPC, 60 pins
Voltage Supply	3.3/9.2/16/-7V (Typical)(VCC/AVDD/VGH/VGL)
Temperature Range	Storage: -30°C to 85°C, Operating: -30°C to 85°C
