Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Material: | Glass Oled | Color: | 16.7m Colors |
| Model: | WLED | Style: | Wide Screen High Resolution 800*480 |
| Brightness: | 350cd | Connector: | 60PIN |
| Contrast Ratio: | 300:1 | Working Time: | 20k Hours |
| High Light: | lcd display screen,tft lcd display |
||

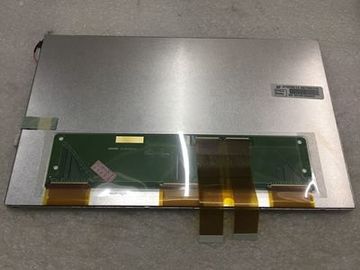

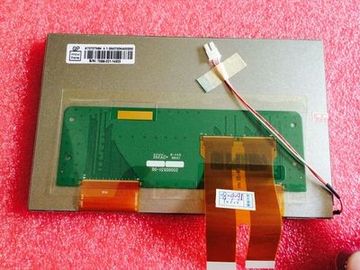

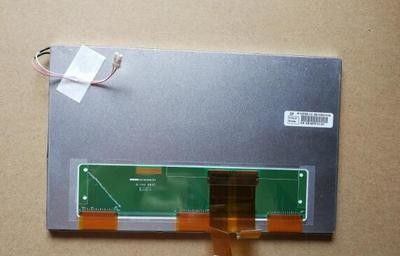

| Manufacturer | Innolux | Model Name | AT102TN03 V.8 |
|---|---|---|---|
| Screen Size | 10.2 inch | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) | Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 222 × 132.48 (H×V) | Outline(mm) | 235 × 145.8 × 6.4 (H×V×D) |
| Bezel Area(mm) | 225.3 × 135.7 (H×V) | Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Response | 15/20 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock | Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% (CIE1931) | Backlight | 3S10P WLED , 20K hours , No Driver |
| Mass | 332g (Typ.) | Used for |
|
| Refresh Rate | 60Hz | Touchscreen | Without |
| Signal Type | TTL (1 ch, 6-bit) , FPC , 60 pins | ||
| Voltage Supply | 3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL) | ||
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C | ||
