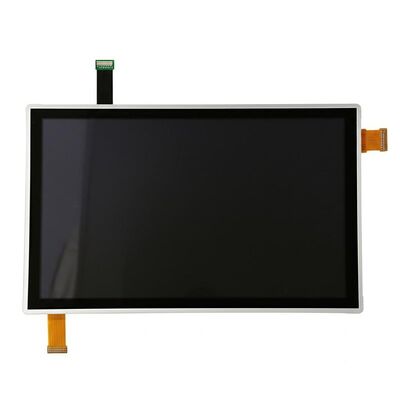

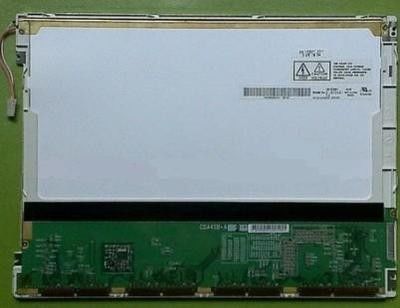

10.4 Inch 1300cd Brightness Industrial LCD Display with 1024x768 Resolution TFT-LCD Panel

Name: 10.4 Inch 1300cd Brightness Industrial LCD Display with 1024x768 Resolution TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TCG104XGLPAPNN-AN40
Price: 43.00 USD
Availability: InStock

Brand Name:	kyocera
Model Number:	TCG104XGLPAPNN-AN40
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

JAPAN

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

1300cd

Connector:

20PIN

Contrast Ratio:

700:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

High Brightness Industrial Touch Screen Display 10.4" 1024*768 20 Pin TCG104XGLPAPNN-AN40

Product Specifications

Manufacturer Kyocera

Model Name TCG104XGLPAPNN-AN40

Screen Size 10.4 inch

Screen Type LCM, a-Si TFT-LCD

Resolution 1024*768 (XGA)

Brightness 1300 cd/m²

Contrast Ratio 700:1

Viewing Angle 85/85/85/85

Response Time 18/12 ms

Backlight WLED, 70K hours

Signal Type LVDS (1 ch, 6/8-bit)

Connector 20 pins

Operating Voltage 3.3V

Operating Temperature -30°C to 80°C

Storage Temperature -30°C to 80°C

Weight 480g

Key Features

Antiglare Surface Treatment
6/8 bit Selectable
Wide Viewing Angle
Landscape Orientation
Wide Temperature Range
Ultra High Brightness (1300 cd/m²)
White LED Backlight with 70K hours lifespan
Without Touch Screen

Product Overview

Kyocera Display Corporation's TCG104XGLPAPNN-AN40 is a 10.4-inch diagonal a-Si TFT-LCD display panel featuring an integral WLED backlight system with LED driver. This industrial-grade display operates across a wide temperature range of -30°C to 80°C and is designed for demanding applications requiring high brightness and reliability.

Application Recommendations

This model is ideally suited for industrial applications and outdoor environments requiring high brightness displays. The robust construction and wide operating temperature range make it perfect for harsh industrial settings and outdoor installations where visibility under direct sunlight is essential.

Important Note: The production status information provided is for reference only. For the latest production details and specifications, we strongly recommend contacting Kyocera or their authorized distributors directly before making any purchasing decisions.
