| Brand Name: | MITSUBISHI |
| Model Number: | AA043MA01 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
Brand
Mitsubishi
Model
AA043MA01
Diagonal Size
4.3 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
800(RGB)×480 [WVGA]
Configuration
RGB Vertical Stripe
Active Area
93(H)×55.8(V) mm
Outline Dim.
103(H)×67.5(V) ×5.8(D) mm
Bezel Area
95.0(H)×57.8(V) mm
Treatment
Clear, Hard coating (2H)
Luminance
200 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (TM)
View Direction
6 o'clock
Response Time
5/20 (Typ.)(Tr/Td)
Viewing Angle
65/65/65/45 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K/16.7M 50% (CIE1931)
Light Source
WLED [2 strings] , W/O Driver
Weight
58.0g (Typ.)
Designed For
Frame Rate
60Hz
Touch Panel
Without
Interface Type
45 pins CMOS (1 ch, 6/8-bit) , Connector
Power Supply
3.3V (Typ.)(VCC)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C

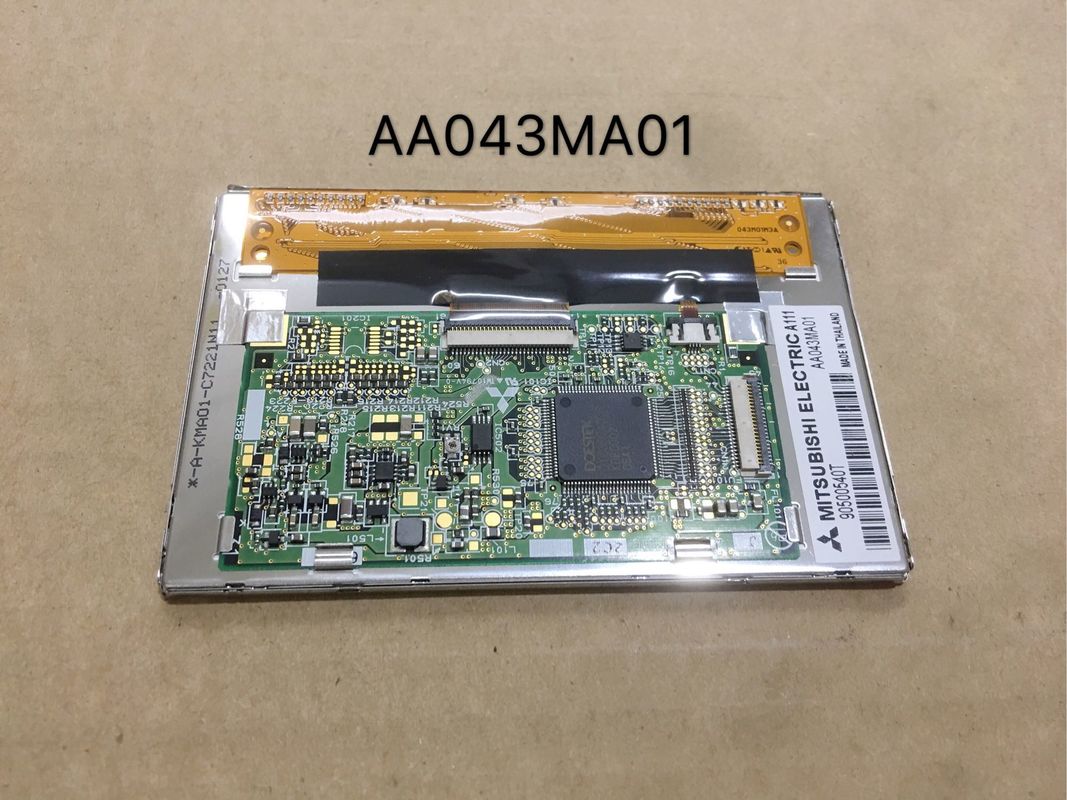

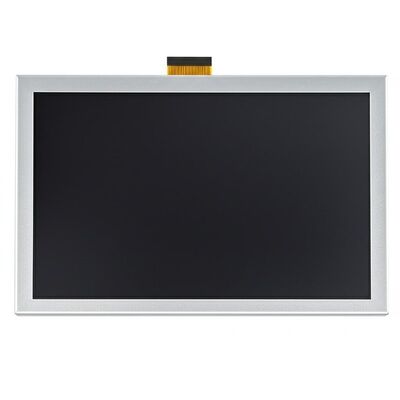

Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA043MA01 (Alias: T-55226D043J-LW-A-AAN) is a 4.3 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Einklcd in the following: 6/8 bit Selectable, Landscape type, White LED Backlight, Wide Aspect Ratio, 180 Reverse , NCM. Based on its features, Einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q3, 2006 and last shippment on Q1, 2019, Now this model is discontinued. We inputted this model's specification on Jun 20 2012 for the first time, and the latest update on Mar 11 2019. If you want to embed AA043MA01 LCM in your future product, einklcd strongly recommend that you should contact with Mitsubishi or it's distributor to learn lateast production and specification detail. The AA043MA01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
