MITSUBISHI 4.3 Inch Industrial LCD Display with 800*480 Resolution and 200cd/m2 Brightness AA043MA01

Name: MITSUBISHI 4.3 Inch Industrial LCD Display with 800*480 Resolution and 200cd/m2 Brightness AA043MA01
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: AA043MA01
Price: 43.00 USD
Availability: InStock

Brand Name:	MITSUBISHI
Model Number:	AA043MA01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

JAPAN

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 800*480

Brightness:

200cd

Connector:

45PIN

Contrast Ratio:

400:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

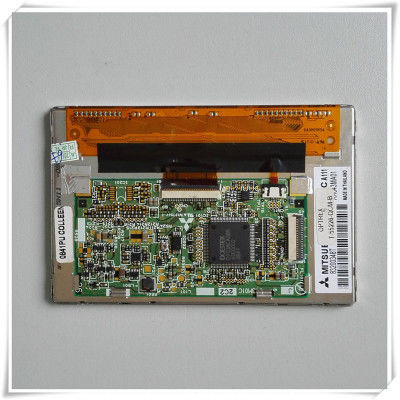

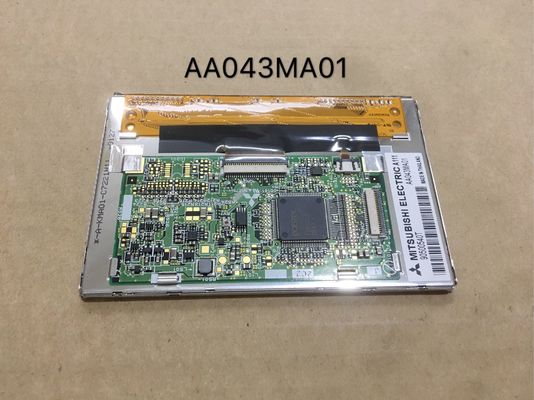

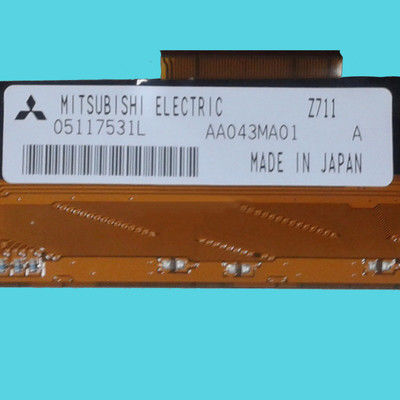

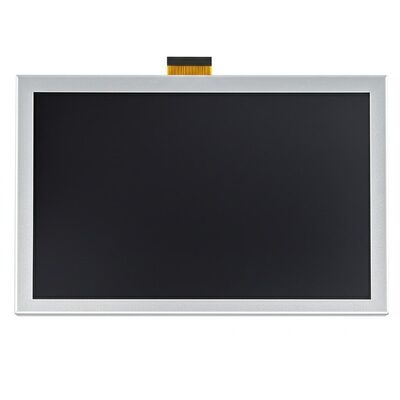

MITSUBISHI 4.3" Industrial Display Monitor AA043MA01

Product Overview

High-performance 4.3-inch industrial TFT-LCD display panel with WVGA resolution, designed for demanding industrial applications requiring reliable operation across wide temperature ranges.

Technical Specifications

Brand	Mitsubishi
Model	AA043MA01 (T-55226D043J-LW-A-AAN)
Display Size	4.3 inch diagonal
Display Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)*480 (WVGA)
Pixel Configuration	RGB Vertical Stripe
Active Area	93.0(H) * 55.8(V) mm
Outline Dimensions	103.0(H) * 67.5(V) * 5.8(D) mm
Bezel Area	95.0(H) * 57.8(V) mm
Surface Treatment	Clear, Hard coating (2H)
Brightness	200 cd/m² (Typical)
Contrast Ratio	400:1 (Typical)
View Direction	6 o'clock
Response Time	5/20 ms (Typical, Tr/Td)
Viewing Angle	65/65/65/45 (Typical, CR≥10)
Operating Mode	TN, Normally White, Transmissive
Color Support	262K/16.7M 50% (CIE1931)
Backlight	WLED [2 strings], Without Driver
Weight	58.0g (Typical)
Frame Rate	60Hz
Touch Panel	Without
Interface	45 pins CMOS (1 channel, 6/8-bit), Connector
Power Supply	3.3V (Typical, VCC)
Operating Temperature	-20°C to 70°C
Storage Temperature	-20°C to 80°C

Key Features

6/8-bit selectable interface for flexible integration
Landscape orientation with wide aspect ratio
White LED backlight system for consistent illumination
180-degree reverse display capability
Designed for industrial applications requiring robust performance

Product Status Information

Important Notice: This model (AA043MA01) began mass production in Q3 2006 with last shipment in Q1 2019. The product is currently discontinued. For integration into future products, we strongly recommend contacting Mitsubishi or their authorized distributors for the latest production status and specifications.

The production status information provided is for reference only and should not be used as the sole basis for decision-making.
