AUO 6.5" Industrial LCD Display with 640*480 Pixels Resolution and 500CD/M2 Brightness

Name: AUO 6.5" Industrial LCD Display with 640*480 Pixels Resolution and 500CD/M2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G065VN01 V0
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G065VN01 V0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 640*480

Brightness:

500cd

Connector:

Contrast Ratio:

600:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

AUO 6.5" Industrial LCD Display 640*480 Pixels G065VN01 V0

Product Specifications

Panel Brand AUO

Panel Model G065VN01 V0

Panel Size 6.5"

Panel Type a-Si TFT-LCD, LCM

Resolution 640*480 (VGA)

Pixel Format RGB Vertical Stripe

Display Area 132.48*99.36 mm

Bezel Opening 135.9*102.8 mm

Outline Size 153*118*11.2 mm

Surface Antiglare, Hard coating (3H)

Brightness 500 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.)

Viewing Angle 80/80/70/70 (CR≥10)

Display Mode TN, Normally White, Transmissive

Best View 6 o'clock

Response Time 15/10 ms (Tr/Td)

Display Colors 262K/16.2M 55% (CIE1931)

Backlight 2 pcs CCFL, 50K hours

Frequency 60Hz

Touch Screen Without

Weight 200g (Typ.)

Signal Interface LVDS (1 ch, 6/8-bit), 31 pins

Input Voltage 3.3V (Typ.)

Operating Temperature -20°C to 70°C

Storage Temperature -20°C to 80°C

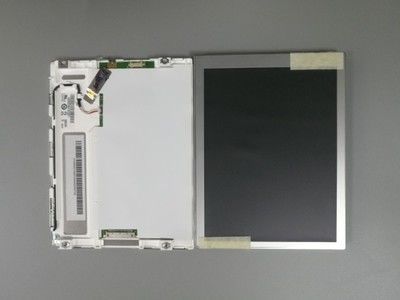

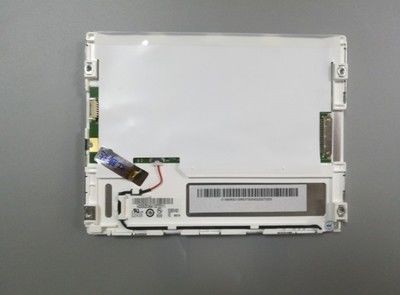

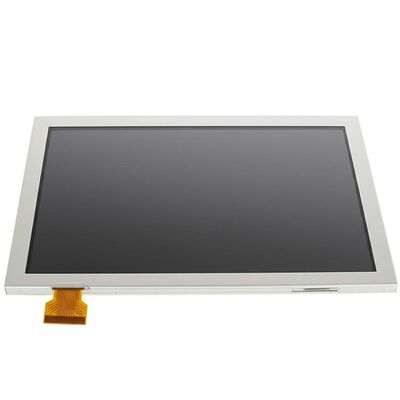

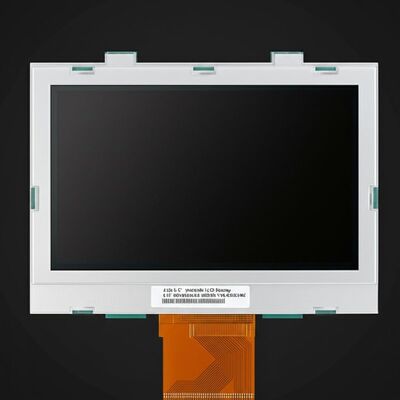

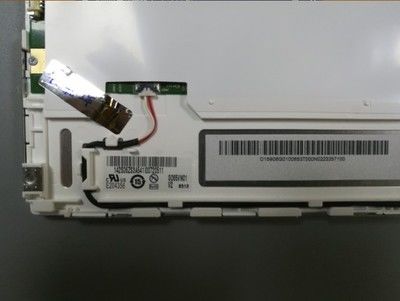

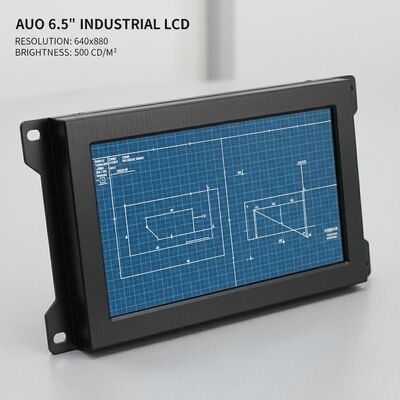

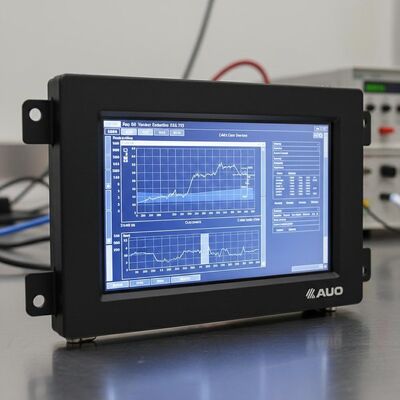

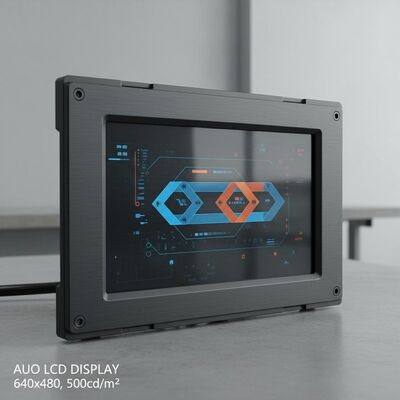

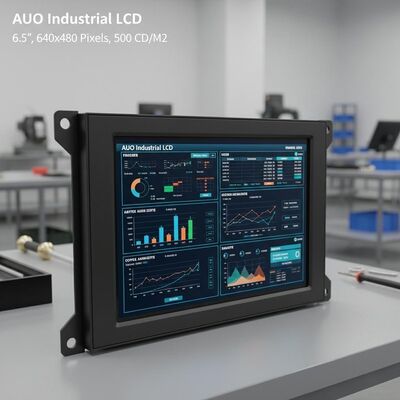

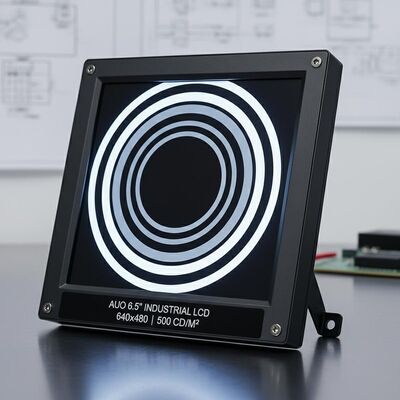

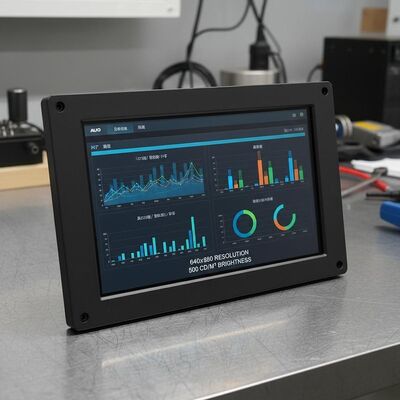

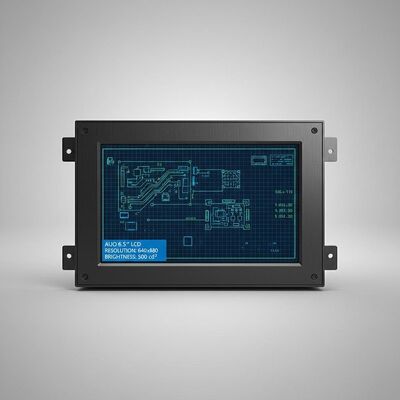

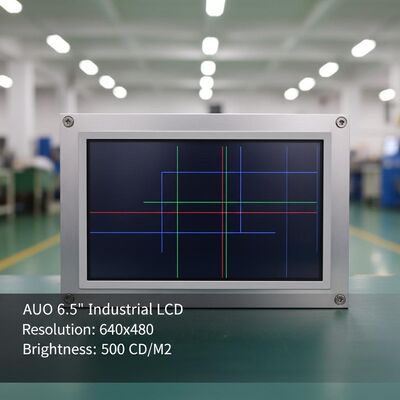

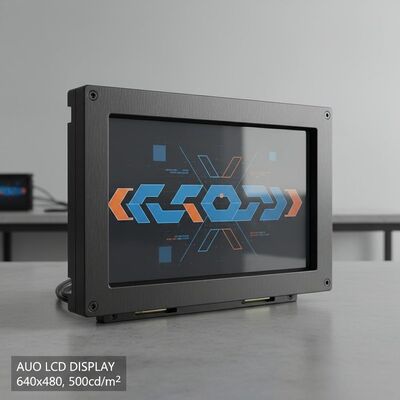

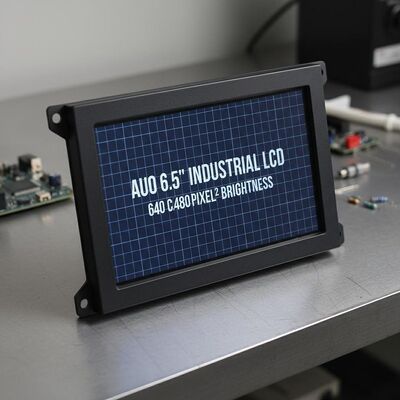

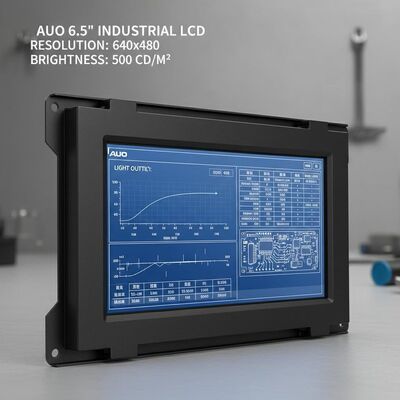

Product Images

Product Overview

The G065VN01 V0 (Alias: G065VN01 V.0) is a 6.5" diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integral CCFL backlight system without driver and without touch screen capability. This industrial-grade display operates within a temperature range of -20°C to 70°C and can withstand vibrations up to 1.5G (14.7 m/s²).

Key Features

Surface Treatment Antiglare with Hard Coating (3H)

Bit Depth 6/8 bit Selectable

Viewing Angle Wide Viewing Angle

Orientation Landscape Type

Backlight Life ≥ 50K hours, Replaceable

Display Rotation 180° Reverse Capable

Important Notice: This model (G065VN01 V0) entered mass production in Q2 2007 with last shipment in Q3 2010 and is now discontinued. For integration into your products, we strongly recommend contacting AUO or their authorized agents for the latest production status and specifications. The information provided here is for reference only and should not be used as the sole basis for decision-making.

Recommended Applications

This industrial LCD display is recommended for industrial applications requiring reliable performance in demanding environments with its robust construction and wide operating temperature range.
