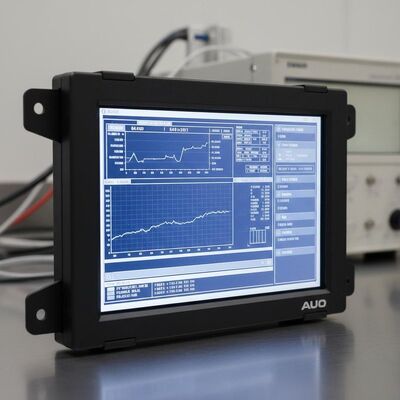

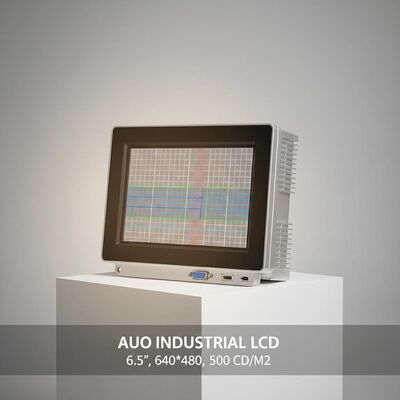

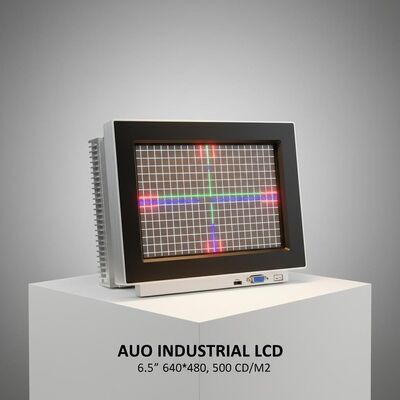

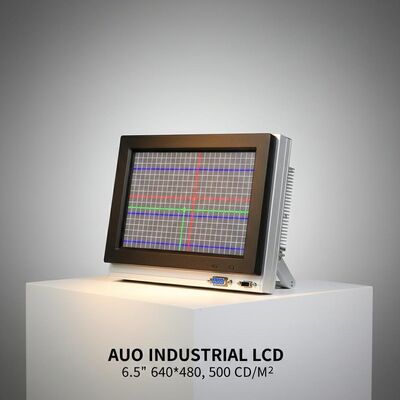

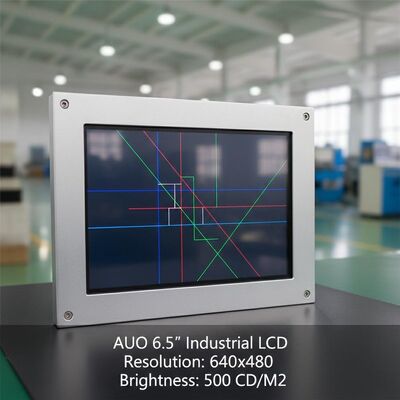

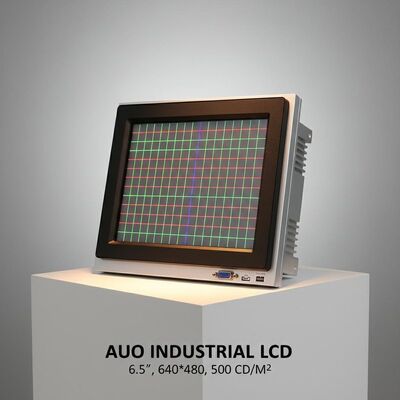

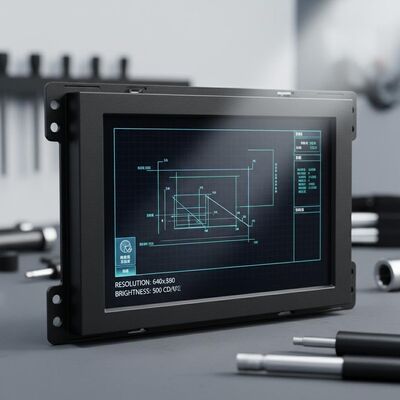

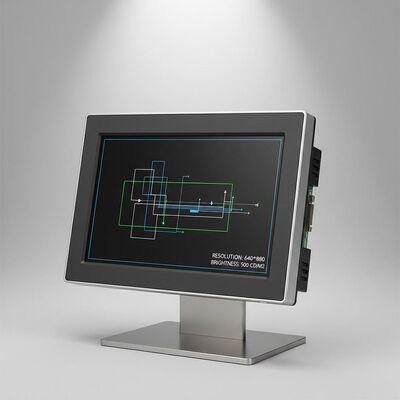

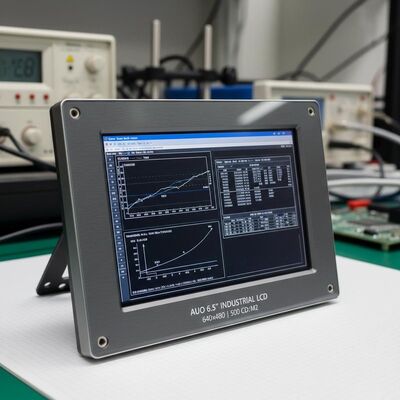

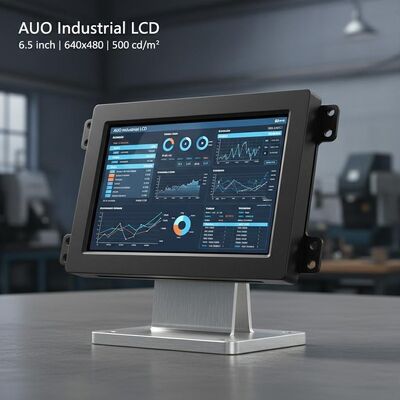

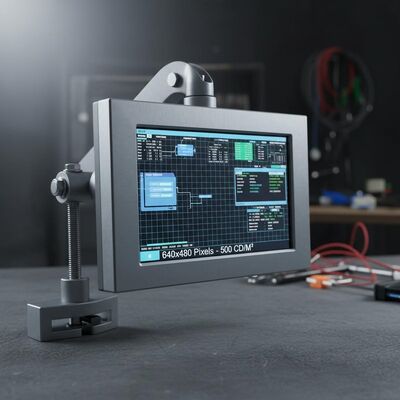

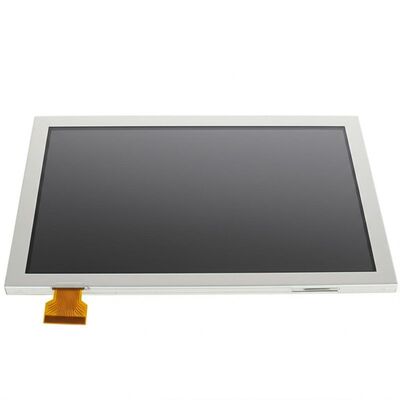

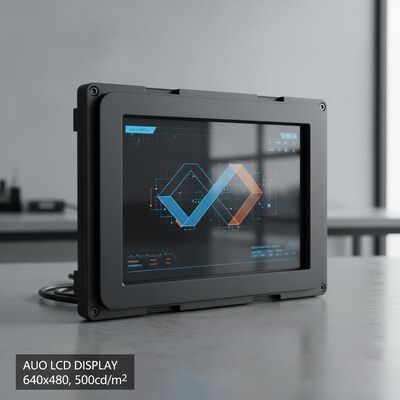

AUO 6.5" Industrial LCD Display 640*480 Pixels G065VN01 V0 500CD/M2 31 Pin WLED Model

• Panel Brand
  AUO
• Panel Model
  G065VN01 V0

• Panel Size
  6.5"
• Panel Type
  a-Si TFT-LCD, LCM

• Resolution
  640(RGB)×480 , VGA
• Pixel Format
  RGB Vertical Stripe

• Display Area
  132.48(W)×99.36(H) mm
• Bezel Opening
  135.9(W)×102.8(H) mm

• Outline Size
  153(W)×118(H) ×11.2(D) mm
• Surface
  Antiglare, Hard coating (3H)

• Brightness
  500 cd/m² (Typ.)
• Contrast Ratio
  600:1 (Typ.) (TM)

• Viewing Angle
  80/80/70/70 (Typ.)(CR≥10)
• Display Mode
  TN, Normally White, Transmissive

• Best View on
  6 o'clock
• Response Time
  15/10 (Typ.)(Tr/Td)

• Display Colors
  262K/16.2M 55% (CIE1931)
• Lamp Type
  2 pcs CCFL , 50K hours , Without Driver

• Frequency
  60Hz
• Touch Screen
  Without

• Panel Weight
  200g (Typ.)
• Application


• Signal Interface
• LVDS (1 ch, 6/8-bit) , 31 pins , Connector

• Input Voltage
• 3.3V (Typ.)

• Environment
• Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C

G065VN01 V0 (Alias: G065VN01 V.0) is a 6.5" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: Antiglare Surface, 6/8 bit Selectable, Wide Viewing Angle, Landscape type, Lamp Repaceable, Lamp life ≥ 50K hours, 180 Reverse . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q2, 2007 and last shippment on Q3, 2010, Now this model is discontinued. We inputted this model's specification on Dec 24 2011 for the first time, and the latest update on May 29 2015. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of G065VN01 V0. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
