LG 6.4 Inch 640x480 Pixels 250cd/m² Brightness Industrial LCD Display TFT-LCD Panel

Name: LG 6.4 Inch 640x480 Pixels 250cd/m² Brightness Industrial LCD Display TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LB064V02-TD01
Price: 43.00 USD
Availability: InStock

Brand Name:	LG
Model Number:	LB064V02-TD01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 640*480

Brightness:

250cd

Connector:

Contrast Ratio:

400:1

Working Time:

20k Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

LG 6.4" High Brightness LCD Display

640*480 Pixels Industrial Computer Monitor LB064V02-TD01

Product Overview

The LB064V02-TD01 is a 6.4-inch diagonal a-Si TFT-LCD display panel with integrated CCFL backlight system, designed specifically for industrial applications. This high-brightness monitor delivers reliable performance in demanding environments.

Technical Specifications

Brand: LG.Philips LCD

Diagonal Size: 6.4 inch

Pixel Format: 640(RGB)*480 [VGA]

Active Area: 130.56(H)*97.92(V) mm

Bezel Area: 133.8(H)*101.1(V) mm

Luminance: 250 cd/m² (Typ.)

View Direction: 6 o'clock

Viewing Angle: 65/65/50/60 (Typ.)(CR≥10)

Support Color: 262K 45% (CIE1931)

Weight: 130/140g (Typ./Max.)

Frame Rate: 60Hz

Display Details

Model	LB064V02-TD01
Type	a-Si TFT-LCD, LCM
Configuration	RGB Vertical Stripe
Outline Dimensions	145.5(H)*111.5(V) mm
Surface Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	400:1 (Typ.) (TM)
Response Time	10/15 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [1 pcs], 20K hours, W/O Driver
Touch Panel	Without

Interface & Environment

Interface Type	30 pins CMOS/TTL (1 ch, 6-bit), Connector
Power Supply	3.3V (Typ.)(VCC)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

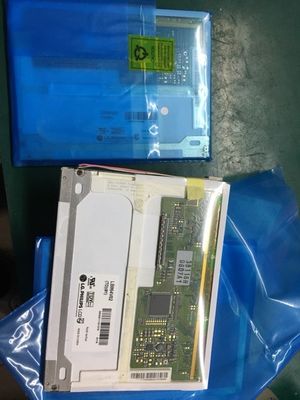

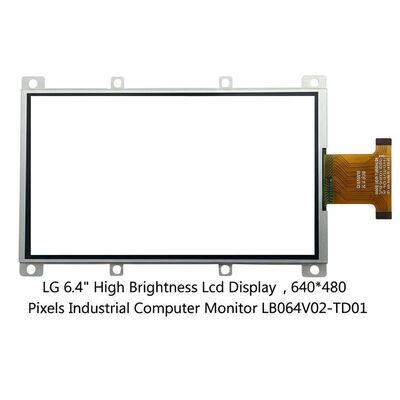

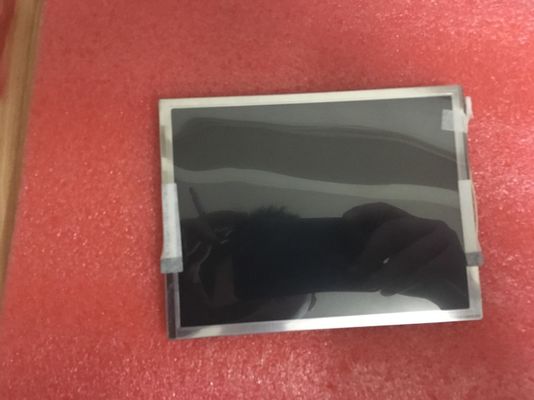

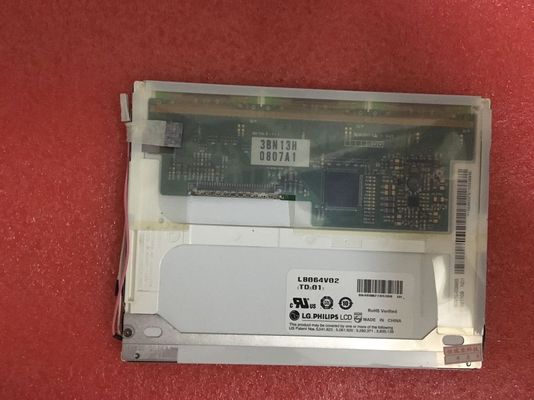

Product Images

Important Notice: This model is discontinued. Mass production began Q2 2007 with last shipment in Q2 2013. EOL: December 2012.

Application Recommendation: This model is recommended for industrial applications. For integration into future products, contact LG.Philips LCD or their distributor for the latest production and specification details. Information on einklcd.com is for reference only and should not be used as the basis for decision making.
