Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Material: | Glass Oled | Color: | 262k Colors |
| Model: | WLED | Style: | Wide Screen High Resolution 640*480 |
| Brightness: | 250cd | Connector: | 30 |
| Contrast Ratio: | 400:1 | Working Time: | 20k Hours |
| High Light: | industrial panel pc touch screen,industrial computer monitor |
||
| Brand |
|---|
| Diagonal Size |
| Pixel Format |
| Active Area |
| Bezel Area |
| Luminance |
| View Direction |
| Viewing Angle |
| Support Color |
| Weight |
| Frame Rate |
| LG.Philips LCD |
| 6.4 inch |
| 640(RGB)×480 [VGA] |
| 130.56(H)×97.92(V) mm |
| 133.8(H)×101.1(V) mm |
| 250 cd/m² (Typ.) |
| 6 o'clock |
| 65/65/50/60 (Typ.)(CR≥10) |
| 262K 45% (CIE1931) |
| 130/140g (Typ./Max.) |
| 60Hz |
| Model |
| Type |
| Configuration |
| Outline Dim. |
| Treatment |
| Contrast Ratio |
| Response Time |
| Operating Mode |
| Light Source |
| Designed For |
| Touch Panel |
| LB064V02-TD01 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 145.5(H)×111.5(V) mm |
| Antiglare, Hard coating (3H) |
| 400:1 (Typ.) (TM) |
| 10/15 (Typ.)(Tr/Td) |
| TN, Normally White, Transmissive |
| CCFL [1 pcs] , 20K hours , W/O Driver |
|
|
| Without |
| Interface Type | 30 pins CMOS/TTL (1 ch, 6-bit) , Connector |
|---|---|
| Power Supply | 3.3V (Typ.)(VCC) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

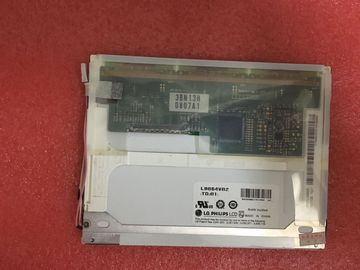

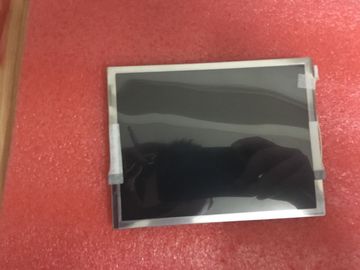

LG.Philips LCD Co., Ltd. (hereafter called LG.Philips LCD) LB064V02-TD01 (Alias: LB064V02 (TD)(01)) is a 6.4 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Antiglare Surface, Landscape type , EOL: Dec. 2012. Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q2, 2007 and last shippment on Q2, 2013, Now this model is discontinued. We inputted this model's specification on Mar 16 2013 for the first time, and the latest update on Aug 23 2013. If you want to embed LB064V02-TD01 LCM in your future product, einklcd strongly recommend that you should contact with LG.Philips LCD or it's distributor to learn lateast production and specification detail. The LB064V02-TD01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
