TIANMA 5.7 Inch Industrial LCD Display 320*240 Pixels 400CD/M2 Brightness TFT-LCD Panel

Name: TIANMA 5.7 Inch Industrial LCD Display 320*240 Pixels 400CD/M2 Brightness TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TM057KDH03
Price: 43.00 USD
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM057KDH03
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 320*240

Brightness:

400cd

Connector:

Contrast Ratio:

500:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

TIANMA 5.7" Industrial LCD Display 320*240 Pixels 400CD/M² 33 Pin TM057KDH03

Product Overview

Brand: TIANMA

Model: TM057KDH03

Display Type: a-Si TFT-LCD, LCM

Diagonal Size: 5.7 inch

Technical Specifications

Resolution: 320*240 QVGA

Luminance: 400 cd/m²

Contrast Ratio: 500:1

Viewing Angle: 70/70/70/60 (CR≥10)

Response Time: 20ms (Tr+Td)

Operating Mode: TN, Normally White, Transmissive

View Direction: 6 o'clock

Interface: 33-pin Parallel RGB (6-bit)

Power Supply: 3.3V (Typical)

Frame Rate: 60Hz

Touch Panel: Without

Weight: 160g

Physical Dimensions

Active Area: 115.2*86.4 mm

Bezel Area: 118.2*89.4 mm

Outline Dimensions: 144*104.6*12.8 mm

Environmental Specifications

Operating Temperature: -20°C to 70°C

Storage Temperature: -30°C to 85°C

Backlight & Display Features

WLED Backlight [3S5P]
Lamp Life: ≥50,000 hours
Without Backlight Driver
Support Color: 262K 50% (CIE1931)
Pixel Configuration: RGB Vertical Stripe
Surface Treatment: Antiglare, Hard Coating (3H)
Landscape Orientation
U/D, L/R Reverse Capability
Lamp Wire Length: 80mm

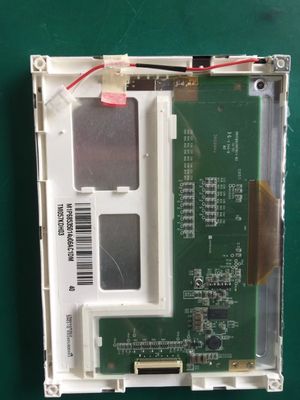

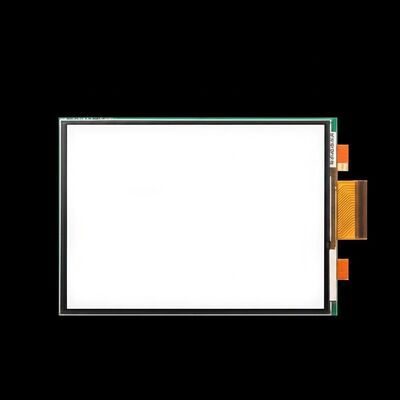

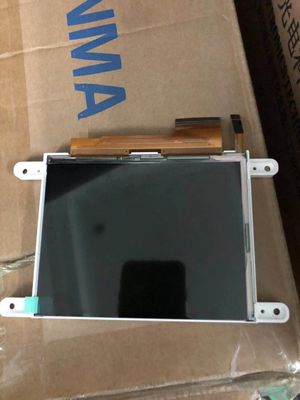

Product Images

Product Information

The TIANMA TM057KDH03 is a 5.7-inch diagonal a-Si TFT-LCD display panel with integrated WLED backlight system, designed specifically for industrial applications requiring reliable performance in demanding environments.

Important Note: This model entered mass production in Q4 2010 and is currently discontinued. For integration into future products, contact TIANMA or their distributor for the latest production and specification details.

Product status information is provided for reference only and should not be used as the sole basis for decision-making.
