Innolux 17 Inch Car LCD Display with 1920*1200 Pixels and 600cd/m2 Brightness for Tesla

Brand Name:	Innox
Model Number:	G170J1-LE1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1200

Brightness:

600cd

Connector:

30pin

Contrast Ratio:

2000:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

tft lcd display

lcd display screen

Product Description

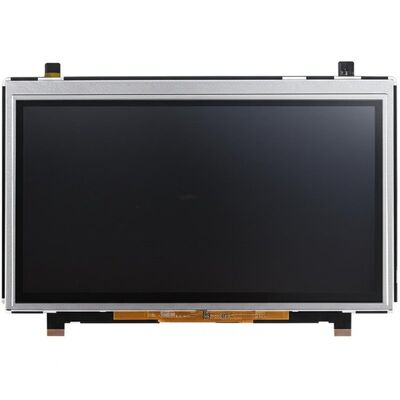

Car GPS LCD Display Screen - Innolux 17 Inch 1920*1200 Pixels

High-performance 17-inch TFT-LCD display panel designed for automotive and industrial applications, featuring WUXGA resolution and high brightness for optimal visibility.

Technical Specifications

Specification	Details
Panel Brand	Innolux
Panel Model	G170J1-LE1
Panel Size	17.0"
Resolution	1920(RGB)*1200 (WUXGA)
Display Area	365.76(W)*228.6(H) mm
Outline Size	386.8(W)250.8(H)19(D) mm
Brightness	600 cd/m² (Typical)
Viewing Angle	88/88/88/88 (Typical, CR≥10)
Best View	Symmetry
Display Colors	16.7M 70% (CIE1931)
Refresh Rate	60Hz
Weight	1.68/1.75Kgs (Typical/Maximum)
Panel Type	a-Si TFT-LCD, LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	369.0(W)*231.8(H) mm
Surface	Glare (Haze 0%)
Contrast Ratio	2000:1 (Typical)
Display Mode	Super MVA, Normally Black, Transmissive
Response Time	20/9 (Typical, Tr/Td)
Backlight	WLED, 30K hours, With LED Driver
Touch Screen	Without
Signal Interface	LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage	5.0V (Typical)
Operating Temperature	-20°C to 80°C
Storage Temperature	-40°C to 85°C
Vibration Level	1.5G (14.7 m/s²) Maximum

Key Features

Glare surface treatment for reduced reflections
Wide viewing angle for optimal visibility
Landscape orientation design
High brightness (600 cd/m²) for outdoor visibility
White LED backlight with 30,000-hour lifespan
Wide aspect ratio for modern display requirements
Standard signal interface positioning
Robust construction for industrial environments

Application Recommendations

This display panel is ideally suited for industrial applications, automotive GPS systems, and other environments requiring reliable, high-visibility displays under varying temperature conditions.

Production Status: Mass production began in Q2 2013. This model is currently in production. Specifications were first recorded on May 26, 2014, with the latest update on December 7, 2016. For the most current production status and specifications, please contact Innolux or their authorized representatives.

Quality Assurance: All our LCD, LED screen, monitor, module, and panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
