| Brand Name: | Innox |
| Model Number: | G170J1-LE1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Weight |
| Innolux |
| 17.0" |
| 1920(RGB)×1200 , WUXGA |
| 365.76(W)×228.6(H) mm |
| 386.8(W)×250.8(H) ×19(D) mm |
| 600 cd/m² (Typ.) |
| 88/88/88/88 (Typ.)(CR≥10) |
| Symmetry |
| 16.7M 70% (CIE1931) |
| 60Hz |
| 1.68/1.75Kgs (Typ./Max.) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| G170J1-LE1 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| 369.0(W)×231.8(H) mm |
| Glare (Haze 0%) |
| 2000:1 (Typ.) (TM) |
| Super MVA, Normally Black, Transmissive |
| 20/9 (Typ.)(Tr/Td) |
| WLED , 30K hours , With LED Driver |
| Without |
|
|
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins , Connector |
|---|---|
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: -20 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
|
|
|

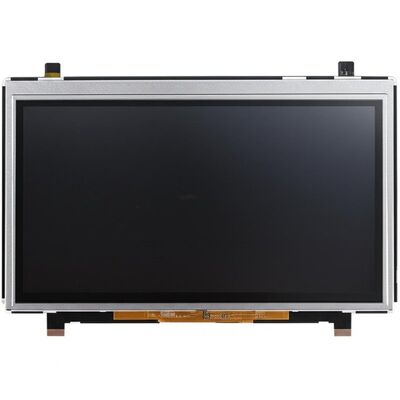

G170J1-LE1 is a 17.0" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 80°C , a storage temperature range of -40 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: Glare Surface, Wide Viewing Angle, Landscape type, Hight Brightness, White LED Backlight, Wide Aspect Ratio, Normal Signal Interface Position . Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q2, 2013, Now this model is in production. We inputted this model's specification on May 26 2014 for the first time, and the latest update on Dec 7 2016. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail of G170J1-LE1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
