300cd/m2 Brightness 22'' Wide Screen AUO Industrial Panel LCD Display with 30 Pin Connector

300cd/m2 Brightness 22'' Wide Screen AUO Industrial Panel LCD Display with 30 Pin Connector

300cd/m2 Brightness 22'' Wide Screen AUO Industrial Panel LCD Display with 30 Pin Connector

Brand Name: AUO
Model Number: G220SW01 V0
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7M Colors
Model:
WLED
Style:
Wide Screen High Resolution 1680*1050
Brightness:
300cd
Connector:
30pin
Contrast Ratio:
2000:1
Working Life:
50K Hours
Packaging Details:
Industrial packing
Highlight:

industrial panel pc touch screen

,

industrial computer monitor

Product Description
300cd/m² Brightness Industrial Display Monitor
AUO Industrial Panel 22" G220SW01 V0 30 Pin
Panel Brand AUO Panel Model G220SW01 V0
Panel Size 22.0" Panel Type a-Si TFT-LCD, LCM
Resolution 1680(RGB)*1050, WSXGA+ Pixel Format RGB Vertical Stripe
Display Area 473.76(W)*296.1(H) mm Bezel Opening 477.7(W)*300.1(H) mm
Outline Size 493.7(W)*320.1(H) mm Surface Antiglare, Hard coating (3H)
Brightness 300 cd/m² (Typ.) Contrast Ratio 2000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode MVA, Normally Black, Transmissive
Best View Symmetry Response Time 15/5 (Typ.)(Tr/Td); 8 (Typ)(G to G)
Display Colors 16.7M 72% (CIE1931) Lamp Type 6 pcs CCFL, 50K hours, Without Driver
Frequency 60Hz Touch Screen Without
Panel Weight 2.95Kgs (Typ.) Signal Interface LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage 5.0V (Typ.) Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C Application Industrial
300cd/m2 Brightness 22'' Wide Screen AUO Industrial Panel LCD Display with 30 Pin Connector 0 300cd/m2 Brightness 22'' Wide Screen AUO Industrial Panel LCD Display with 30 Pin Connector 1 300cd/m2 Brightness 22'' Wide Screen AUO Industrial Panel LCD Display with 30 Pin Connector 2
Product Overview

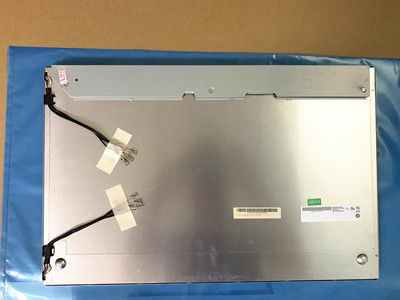

The G220SW01 V0 is a 22.0-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integral CCFL backlight system designed for industrial applications.
  • High Color Gamut with 16.7 million colors
  • Antiglare surface with hard coating (3H) protection
  • Wide viewing angle (89/89/89/89) for optimal visibility
  • Landscape orientation with wide aspect ratio
  • Extended lamp life ≥ 50,000 hours
  • MVA display technology with normally black mode
  • LVDS signal interface with 30-pin connector
Important Note: This model entered mass production in Q4 2008 and was discontinued in Q4 2015. For current production status and latest specifications, please contact AUO or their authorized agents directly.
Quality Assurance: All our LCD/LED screen monitor modules undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
Product information first entered: December 19, 2012 | Last updated: July 7, 2015
