12.1 Inch 800*600 Pixels 450cd/m2 Industrial LCD Display TFT-LCD Panel with 20 Pin Connector

Name: 12.1 Inch 800*600 Pixels 450cd/m2 Industrial LCD Display TFT-LCD Panel with 20 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G121AGE-L03
Price: 43.00 USD
Availability: InStock

Brand Name:	INNOLUX
Model Number:	G121AGE-L03
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 800*600

Brightness:

450cd

Connector:

20pin

Contrast Ratio:

1500:1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

20 Pin Connector Industrial Monitor Display 12.1" 800*600 Pixels Innoux G121AGE-L03

Product Overview

The Innolux G121AGE-L03 is a 12.1-inch diagonal industrial-grade TFT-LCD display module featuring Super MVA technology, high brightness, and wide operating temperature range for demanding industrial applications.

Technical Specifications

Brand	Innolux	Model	G121AGE-L03
Diagonal Size	12.1 inch	Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB)*600 [SVGA]	Configuration	RGB Vertical Stripe
Active Area	246(H)*184.5(V) mm	Outline Dimensions	260.5(H)204(V)8.9(D) mm
Bezel Area	249.0(H)*187.5(V) mm	Surface Treatment	Antiglare, Hard coating (3H)
Luminance	450 cd/m² (Typ.)	Contrast Ratio	1500:1 (Typ.)
View Direction	Symmetry	Response Time	13/12 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	Super MVA, Normally Black, Transmissive
Support Color	262K/16.2M 50% (CIE1931)	Light Source	WLED, 50K hours, With LED Driver
Weight	506/530g (Typ./Max.)	Frame Rate	60Hz
Touch Panel	Without	Interface Type	20 pins LVDS (1 ch, 6/8-bit), Connector
Power Supply	3.3/5.0V (Typ.)(VCC)	Operating Temperature	-30 ~ 85 °C
Storage Temperature	-30 ~ 85 °C	Vibration Level	1.5G (14.7 m/s²)

Key Features

Antiglare Surface with Hard Coating (3H)
6/8 bit Selectable Interface
Wide Viewing Angle (89/89/89/89)
Landscape Orientation
Wide Operating Temperature Range (-30°C to 85°C)
Replaceable White LED Backlight
Long Lamp Life (≥ 50,000 hours)
U/D, L/R Reverse Capability

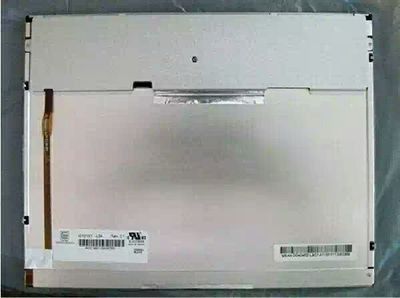

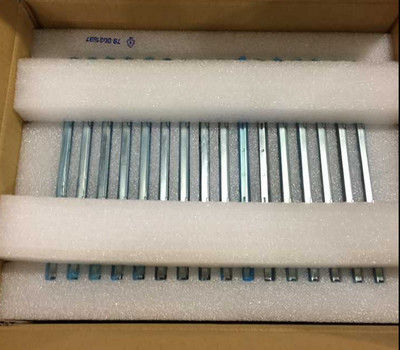

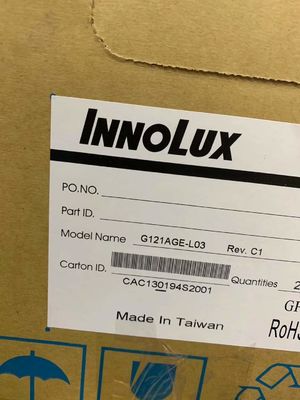

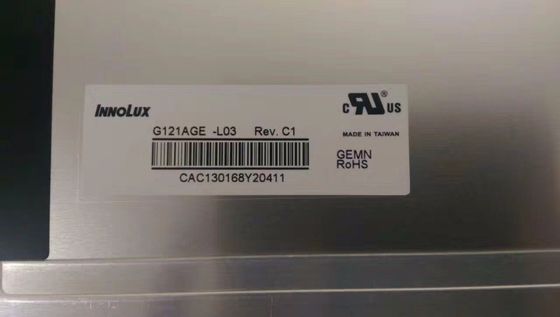

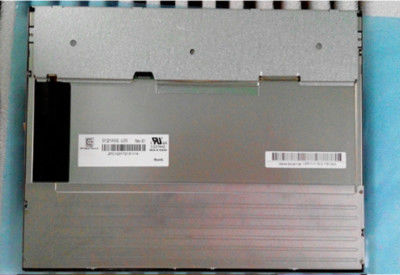

Product Images

Application Areas

This industrial-grade display module is specifically designed for applications in Industrial equipment, Healthcare devices, industrial computers, all-in-one computers, desktop systems, and laptop displays.

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.

Production Note: Mass production of the G121AGE-L03 began in Q2 2013 and the model remains in production. For the latest production status and detailed specifications, we strongly recommend contacting Innolux or their authorized distributors directly. The production status information provided here is for reference only and should not be used as the sole basis for decision-making.
