G121XCE-L01 12.1 Inch Industrial LCD Display with 1024*768 Pixels and 600cd Brightness WLED Model

G121XCE-L01 12.1 Inch Industrial LCD Display with 1024*768 Pixels and 600cd Brightness WLED Model

G121XCE-L01 12.1 Inch Industrial LCD Display with 1024*768 Pixels and 600cd Brightness WLED Model

Brand Name: INNOLUX
Model Number: G121XCE-L01
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
KOREA
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7M Colors
Model:
WLED
Style:
Wide Screen High Resolution 1024*768
Brightness:
600cd
Connector:
20pin
Contrast Ratio:
1000:1
Working Life:
50K Hours
Packaging Details:
Industrial packing
Highlight:

industrial panel pc touch screen

,

industrial computer monitor

Product Description
G121XCE-L01 Industrial Touch Screen Display 12.1" 1024*768 Pixels WLED Model
Product Specifications
Brand Innolux Model G121XCE-L01
Diagonal Size 12.1 inch Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)*768 [XGA] Configuration RGB Vertical Stripe
Active Area 245.76(H)*184.32(V) mm Outline Dimensions 260.5(H)*204(V)*8.9(D) mm
Bezel Area 249.0(H)*187.5(V) mm Surface Treatment Antiglare, Hard coating (3H)
Luminance 600 cd/m² (Typical) Contrast Ratio 1000:1 (Typical)
View Direction Symmetry Response Time 13/12 (Typical)(Tr/Td)
Viewing Angle 89/89/89/89 (Typical)(CR≥10) Operating Mode AAS, Normally Black, Transmissive
Support Color 262K/16.2M 72% (CIE1931) Light Source WLED, 50K hours, With LED Driver
Weight 490/510g (Typical/Maximum) Frame Rate 60Hz
Touch Panel Without Interface Type 20 pins LVDS (1 ch, 6/8-bit), Connector
Power Supply 3.3V (Typical) Operating Temperature -30 ~ 85 °C
Storage Temperature -40 ~ 90 °C

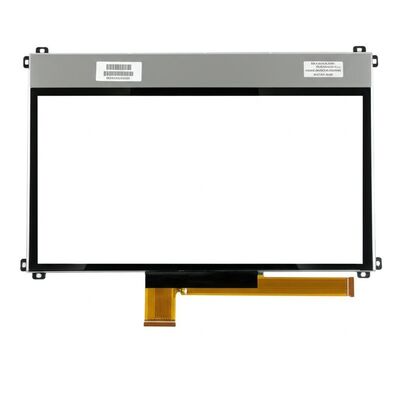

G121XCE-L01 12.1 Inch Industrial LCD Display with 1024*768 Pixels and 600cd Brightness WLED Model 0 G121XCE-L01 12.1 Inch Industrial LCD Display with 1024*768 Pixels and 600cd Brightness WLED Model 1
Product Overview
The Innolux G121XCE-L01 is a 12.1-inch diagonal a-Si TFT-LCD display panel with an integrated WLED backlight system and LED driver. This industrial-grade display does not include a touch screen and features wide operating temperature ranges from -30°C to 85°C.
Key Features
  • High Color Gamut with 72% CIE1931 coverage
  • Antiglare Surface with Hard Coating (3H)
  • 6/8-bit Selectable Interface
  • Wide Viewing Angle (89/89/89/89)
  • Landscape Orientation
  • Wide Temperature Operation
  • High Brightness 600 cd/m²
  • White LED Backlight with 50,000+ hours lifespan
  • Normal Signal Interface Position
  • U/D, L/R Reverse Capability
Application Recommendations
This model is specifically designed for industrial applications, computers, all-in-one computers, desktops, and laptop displays. Mass production began in Q1 2018 and the model remains in active production.
Important Note: All our LCD/LED screen monitor module panel products undergo comprehensive individual testing before shipment. For the latest production status and detailed specifications, we strongly recommend contacting Innolux or their authorized distributors directly.
