1024*768 Pixels 600cd/m2 Brightness Glass OLED Industrial LCD Display TFT-LCD Display Panel

Name: 1024*768 Pixels 600cd/m2 Brightness Glass OLED Industrial LCD Display TFT-LCD Display Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G121XCE-L01
Price: 43.00 USD
Availability: InStock

Brand Name:	INNOLUX
Model Number:	G121XCE-L01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

600cd

Connector:

20pin

Contrast Ratio:

1000:1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

1024*768 Pixels Industrial LCD Display Glass OLED 600cd/m² Brightness G121XCE-L01

Product Specifications

Brand	Innolux	Model	G121XCE-L01
Diagonal Size	12.1 inch	Type	a-Si TFT-LCD, LCM
Pixel Format	1024(RGB)*768 [XGA]	Configuration	RGB Vertical Stripe
Active Area	245.76(H)*184.32(V) mm	Outline Dimensions	260.5(H)204(V)8.9(D) mm
Bezel Area	249.0(H)*187.5(V) mm	Treatment	Antiglare, Hard coating (3H)
Luminance	600 cd/m² (Typical)	Contrast Ratio	1000:1 (Typical)
View Direction	Symmetry	Response Time	13/12 (Typical)(Tr/Td)
Viewing Angle	89/89/89/89 (Typical)(CR≥10)	Operating Mode	AAS, Normally Black, Transmissive
Support Color	262K/16.2M 72% (CIE1931)	Light Source	WLED, 50K hours, With LED Driver
Weight	490/510g (Typical/Maximum)	Frame Rate	60Hz
Touch Panel	Without	Interface Type	20 pins LVDS (1 ch, 6/8-bit), Connector
Power Supply	3.3V (Typical)	Operating Temperature	-30 ~ 85 °C
Storage Temperature	-40 ~ 90 °C

Product Overview

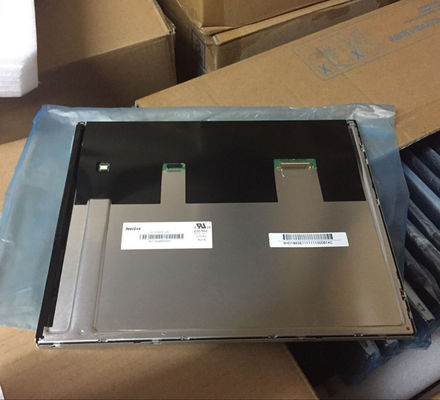

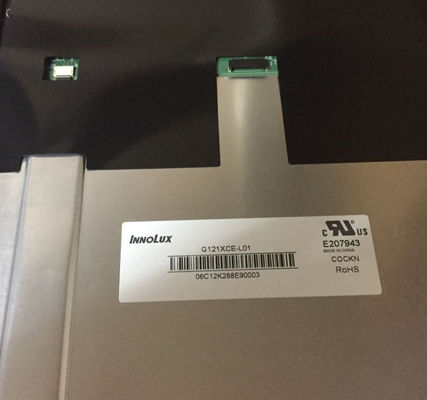

The Innolux G121XCE-L01 is a 12.1-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system with LED driver. This industrial-grade display operates within a wide temperature range of -30°C to 85°C and stores safely from -40°C to 90°C.

Key Features

High Color Gamut with 72% CIE1931 coverage
Antiglare Surface with Hard Coating (3H)
6/8-bit Selectable Interface
Wide Viewing Angle (89/89/89/89)
Landscape Orientation
Wide Operating Temperature Range
High Brightness 600 cd/m²
White LED Backlight with 50,000+ hours lifespan
Normal Signal Interface Position
U/D, L/R Reverse Capability

Application Recommendations

This display model is specifically designed for industrial applications, computers, all-in-one computers, desktops, and laptops. Originally entering mass production in Q1 2018, the G121XCE-L01 remains in active production.

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.

Note: Production status information is provided for reference only. For the latest production details and specifications, we strongly recommend contacting Innolux or their authorized distributors directly.
