500cd/m2 10.4'' 1024*768 Pixels Industrial LCD Display and Computer Monitor

Name: 500cd/m2 10.4'' 1024*768 Pixels Industrial LCD Display and Computer Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G104X1-L04
Price: 43.00 USD
Availability: InStock

Brand Name:	INNOLUX
Model Number:	G104X1-L04
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

350cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

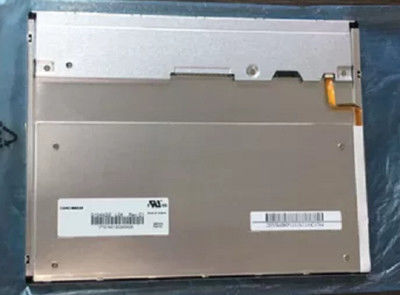

Industrial Computer Monitor - Innolux 10.4" G104X1-L04

Panel Brand Innolux

Panel Model G104X1-L04

Panel Size 10.4"

Panel Type a-Si TFT-LCD, LCM

Resolution 1024*768 (XGA)

Pixel Format RGB Vertical Stripe

Brightness 500 cd/m²

Contrast Ratio 1000:1

Physical Specifications

Display Area 210.4 * 157.8 mm

Bezel Opening 215.4 * 161.8 mm

Outline Size 225.5 * 176.3 * 9.2 mm

Panel Weight 430±50g

Display Performance

Viewing Angle 88/88/88/88 (CR≥10)

Display Mode Super MVA, Normally Black

Best View Symmetry

Response Time 14/11 ms (Tr/Td)

Display Colors 262K/16.2M 55% (CIE1931)

Surface Antiglare

Technical Specifications

Backlight Type WLED, 50K hours

Refresh Rate 60Hz

Touch Screen Without

Signal Interface LVDS (1 ch, 6/8-bit), 30 pins

Input Voltage 3.3V

Environmental Specifications

Operating Temperature -30°C to 80°C

Storage Temperature -30°C to 80°C

Product Overview

The G104X1-L04 is a 10.4" diagonal a-Si TFT-LCD display panel from Innolux Corporation featuring an integral WLED backlight system with LED driver. This industrial-grade monitor operates without a touch screen and is designed for demanding environments with an extensive temperature range of -30°C to 80°C.

Key features include antiglare surface treatment, 6/8-bit selectable interface, wide viewing angles, landscape orientation compatibility, wide temperature operation, replaceable backlight lamps, and white LED backlighting with a lifespan exceeding 50,000 hours. The panel supports 180-degree reverse mounting and is available in haze variations of 25% and 22%.

This model entered mass production in Q1 2010 and remains in current production. EINKLCD recommends this display for industrial applications including computers, all-in-one systems, desktops, and laptops.

Quality Assurance: All LCD/LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.

Important Note: For the latest production status and detailed specifications, we strongly recommend contacting Innolux or their authorized representatives directly. The information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
