10.4 Inch 1024x768 Pixels 350cd/m2 Industrial LCD Display TFT-LCD Panel

Name: 10.4 Inch 1024x768 Pixels 350cd/m2 Industrial LCD Display TFT-LCD Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G104X1-L03
Price: 43.00 USD
Availability: InStock

Brand Name:	INNOLUX
Model Number:	G104X1-L03
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

350cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

16.7M Colors Industrial LCD Display G104X1-L03 10.4" 1024*768 Pixels 350cd/m²

Product Specifications

Brand Innolux

Model G104X1-L03

Diagonal Size 10.4 inch

Display Type a-Si TFT-LCD, LCM

Pixel Format 1024(RGB)*768 [XGA]

Configuration RGB Vertical Stripe

Active Area 210.4(H)*157.8(V) mm

Outline Dimensions 246.6(H)*175.8(V)*7.97(D) mm

Bezel Area 215.4(H)*161.8(V) mm

Surface Treatment Antiglare

Luminance 350 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

View Direction Symmetry

Response Time 14/11 (Typ.)(Tr/Td)

Viewing Angle 88/88/88/88 (Typ.)(CR≥10)

Operating Mode Super MVA, Normally Black, Transmissive

Color Support 262K/16.2M 53% (CIE1931)

Light Source WLED, 30K hours, With LED Driver

Weight 280g (Typ.)

Frame Rate 60Hz

Touch Panel Without

Interface Type 30 pins LVDS (1 ch, 6/8-bit), Connector

Power Supply 3.3V (Typ.)

Operating Temperature -20 ~ 70 °C

Storage Temperature -20 ~ 70 °C

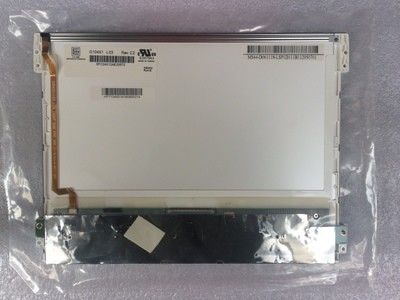

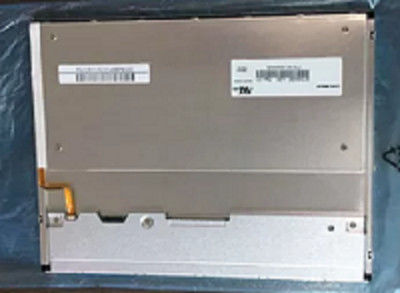

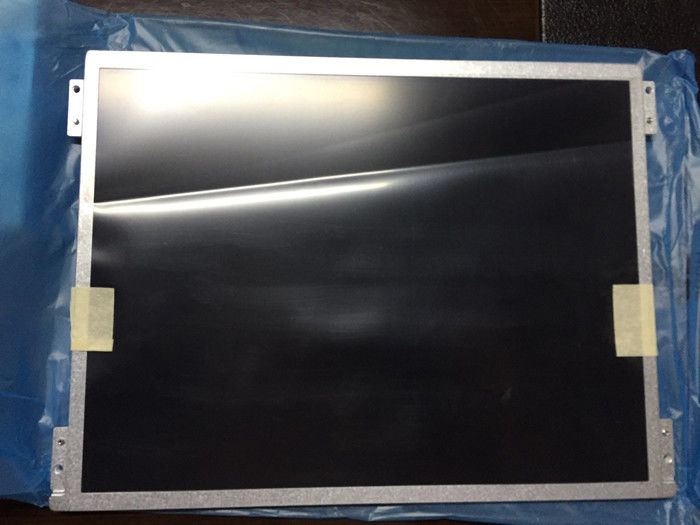

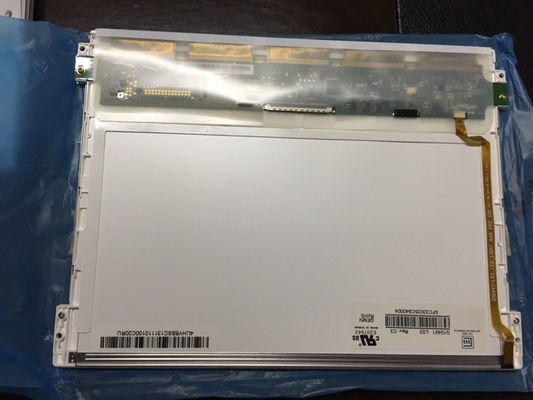

Product Images

Product Highlights

Industrial-Grade Display Solution - This 350cd/m² LCD model is specifically designed for industrial applications, computers, all-in-one computers, desktops, and laptop LCD replacements.

Quality Assurance - All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
