AUO 3.5 Inch Industrial LCD Display Monitor with 240*320 Pixels and 450cd/m2 Brightness

Name: AUO 3.5 Inch Industrial LCD Display Monitor with 240*320 Pixels and 450cd/m2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: C035QVN01.0
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	C035QVN01.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 240*320

Brightness:

450cd

Connector:

50PIN

Contrast Ratio:

1000:1

Working Life:

10K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

AUO 3.5 Inch Industrial LCD Display Monitor C035QVN01.0 240*320 Pixels 450cd/m²

Product Specifications

Brand AUO

Model C035QVN01.0

Diagonal Size 3.5 inch

Display Type a-Si TFT-LCD, LCM

Resolution 240(RGB)*320 [QVGA]

Pixel Configuration RGB Vertical Stripe

Active Area 53.28(H)*71.04(V) mm

Outline Dimensions 69.2(H)*87.22(V)*21(D) mm

Luminance 450 cd/m² (Typ.)

Contrast Ratio 1000:1 (Min.)

Response Time 10/25 ms (Typ.)(Tr/Td)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10)

Operating Mode AMVA, Normally Black, Transmissive

Color Support 262K 70% (CIE1931)

Backlight WLED [2S2P], 10K hours

Weight 103g

Interface 50 pins Parallel RGB (1 ch, 6-bit), FPC

Power Supply 3.3V (Typ.)

Operating Temperature -30°C to 85°C

Storage Temperature -40°C to 95°C

Key Features

Antiglare Surface Treatment
Wide Viewing Angle Performance
Portrait Display Orientation
Extended Operating Temperature Range
White LED Backlight System
Display Reverse Capability (U/D, L/R)

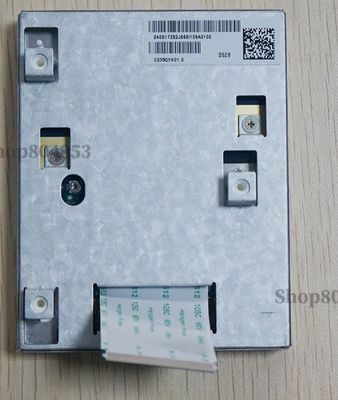

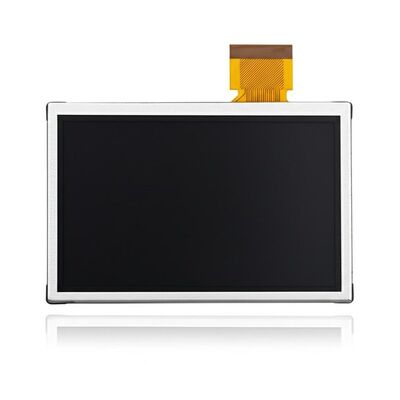

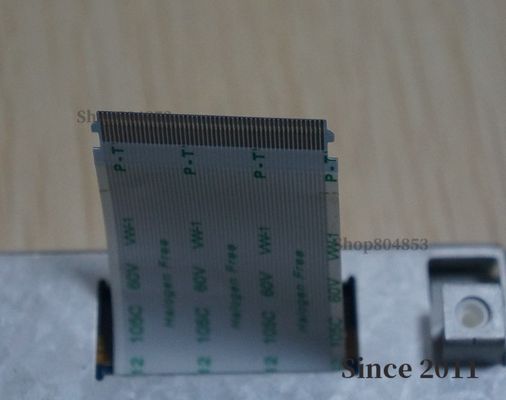

Product Images

Product Overview

The C035QVN01.0 is a 3.5-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integrated WLED backlight system. This industrial-grade display operates within a wide temperature range of -30°C to 85°C and is recommended for automotive display applications.

Production Information

Mass production began in Q2 2013, and the model remains in current production. For integration into your products, we strongly recommend contacting AUO or their authorized agents for the latest production status and detailed specifications.

Important: Production status information is provided for reference only and should not be used as the sole basis for decision-making.

Quality Assurance: All our LCD display modules undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
