| Brand Name: | AUO |
| Model Number: | C035QVN01.0 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
Brand
AUO
Model
C035QVN01.0
Diagonal Size
3.5 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
240(RGB)×320 [QVGA]
Configuration
RGB Vertical Stripe
Active Area
53.28(H)×71.04(V) mm
Outline Dim.
69.2(H)×87.22(V) ×21(D) mm
Bezel Area
56.18(H)×73.54(V) mm
Treatment
Antiglare
Luminance
450 cd/m² (Typ.)
Contrast Ratio
1000:1 (Min.) (TM)
View Direction
Symmetry
Response Time
10/25 (Typ.)(Tr/Td)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
AMVA, Normally Black, Transmissive
Support Color
262K 70% (CIE1931)
Light Source
WLED [2S2P] , 10K hours , W/O Driver
Weight
103g
Designed For
Frame Rate
60Hz
Touch Panel
Without
Interface Type
50 pins Parallel RGB (1 ch, 6-bit) , FPC
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C

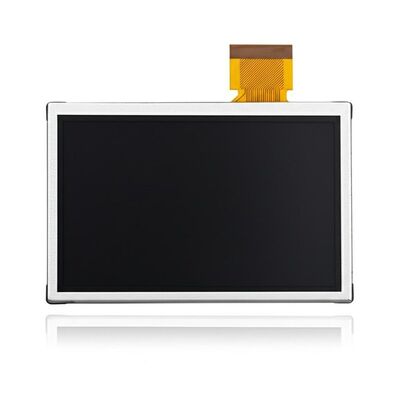

The C035QVN01.0 is a 3.5 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C . It's general features are summarized by einklcd in the following: Antiglare Surface, Wide Viewing Angle, Portrait type, Wide Temperature, White LED Backlight, U/D,L/R Reverse . Based on its features,einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in einklcd this model mass production on Q2, 2013, Now this model is in production. We inputted this model's specification on Jun 16 2014 for the first time, and the latest update on Apr 8 2017. If you want to embed C035QVN01.0 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The C035QVN01.0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
