| Brand Name: | Panasonic |
| Model Number: | VVX21F136J00 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
Brand
Panasonic
Model
VVX21F136J00
Diagonal Size
21.3 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1600(RGB)×1200 [UXGA]
Configuration
RGB Vertical Stripe
Active Area
432(H)×324(V) mm
Outline Dim.
456(H)×349.5(V) ×22.8(D) mm
Bezel Area
436.0(H)×328.0(V) mm
Treatment
Antiglare
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
11/9 (Typ.)(Tr/Td)
Viewing Angle
89/89/89/89 (Min.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Support Color
16.7M 75% (CIE1931)
Light Source
WLED [11S5P] , 30K hours , W/O Driver
Weight
2.75Kgs (Typ.)
Designed For
Frame Rate
60Hz
Touch Panel
Without
Interface Type
30 pins LVDS (2 ch, 8-bit) , Connector
Power Supply
5.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

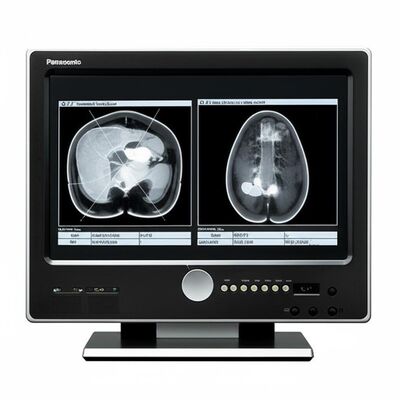

VVX21F136J00 is a 21.3" diagonal a-Si TFT-LCD display panel product from Panasonic Liquid Crystal Display Co., Ltd. (hereafter called Panasonic), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: High Color Gamut, Antiglare Surface, Wide Viewing Angle, Landscape type, White LED Backlight . Based on its features, Panelook recommend that this model be applied to Medical Imaging etc. According to the information stored in Panelook this model mass production on Q2, 2013, Now this model is in production.We inputted this model's specification on Aug 13 2013 for the first time, and the latest update on Jan 29 2018. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Panasonic or it's agent to learn lateast production and specification detail of VVX21F136J00. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
