Panasonic 21.3'' Industrial Panel PC with 400cd/m2 Brightness for Medical Imaging LCD Display

Name: Panasonic 21.3'' Industrial Panel PC with 400cd/m2 Brightness for Medical Imaging LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: VVX21F136J00
Price: 43.00 USD
Availability: InStock

Brand Name:	Panasonic
Model Number:	VVX21F136J00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution1600*1200

Brightness:

400cd

Connector:

30PIN

Contrast Ratio:

1500:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

Panasonic 21.3" Industrial Panel PC Touch Screen VVX21F136J00

Product Overview

VVX21F136J00 is a 21.3" diagonal a-Si TFT-LCD display panel from Panasonic Liquid Crystal Display Co., Ltd. This industrial-grade panel features an integral WLED backlight system and is specifically designed for demanding applications such as medical imaging.

Brand: Panasonic

Model: VVX21F136J00

Display Size: 21.3 inch

Display Type: a-Si TFT-LCD, LCM

Resolution: 1600*1200 (UXGA)

Brightness: 400 cd/m²

Contrast Ratio: 1500:1

Viewing Angle: 89/89/89/89 (CR≥10)

Operating Mode: IPS, Normally Black

Color Support: 16.7M colors, 75% CIE1931

Backlight: WLED, 30K hours

Interface: 30 pins LVDS (2 ch, 8-bit)

Power Supply: 5.0V

Touch Panel: Without

Weight: 2.75 kg

Key Features

High Color Gamut for accurate color reproduction
Antiglare Surface reducing reflections in bright environments
Wide Viewing Angle (IPS technology)
Landscape orientation optimized for medical imaging
White LED Backlight with 30,000 hours lifespan
Robust construction for industrial applications

Environmental Specifications

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

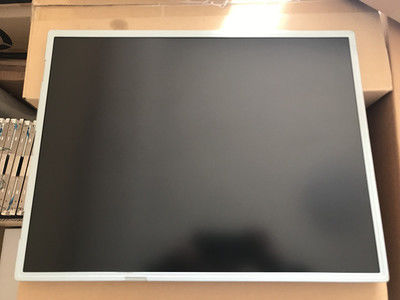

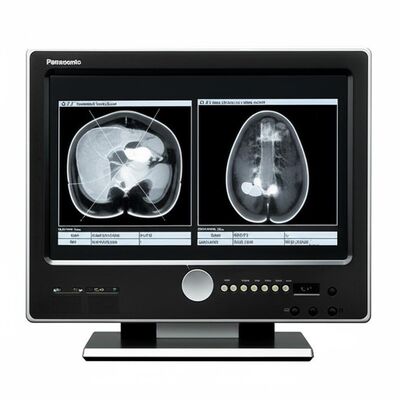

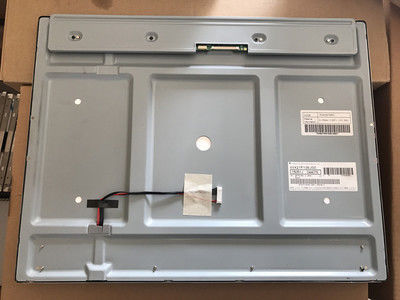

Product Images

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.

Production Status Note: This model entered mass production in Q2 2013 and is currently in production. For the latest specifications and availability, we recommend contacting Panasonic or their authorized agents directly.
