HITACHI 5.7 Inch Car LCD Display with 320*240 Pixels and 40 Pin Connector

Name: HITACHI 5.7 Inch Car LCD Display with 320*240 Pixels and 40 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TX14D22VM1BPA
Price: 30.00 USD
Availability: InStock

Brand Name:	hitachi
Model Number:	TX14D22VM1BPA
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 320*240

Brightness:

330cd

Connector:

40pin

Contrast Ratio:

350:1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

tft lcd display

Product Description

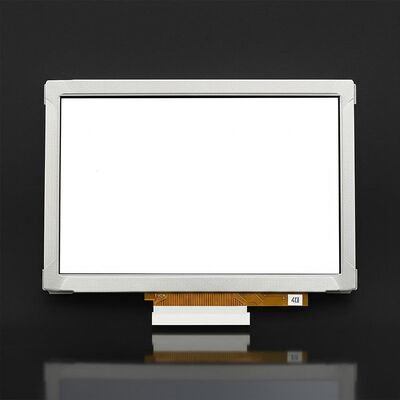

HITACHI 5.7 Inch Car LCD Display

Product Overview

High-performance 5.7-inch TFT-LCD display module with 320*240 QVGA resolution, designed for automotive and industrial applications. Features 320 cd/m² brightness and 4-wire resistive touchscreen.

Technical Specifications

Panel Brand	HITACHI
Panel Model	TX14D22VM1BPA
Panel Size	5.7 inches
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)*240 (QVGA)
Pixel Format	RGB Vertical Stripe
Display Area	115.2(W)*86.4(H) mm
Outline Size	131(W)*102.2(H) mm
Surface Treatment	Antiglare
Brightness	320 cd/m² (Typical)
Contrast Ratio	350:1 (Typical)
Viewing Angle	80/80/80/60 (Typical, CR≥5)
Display Mode	TN, Normally White, Transmissive
Best View Direction	12 o'clock
Response Time	30 ms (Typical, Tr+Td)
Display Colors	262K 50% (CIE1931)
Backlight Type	3S5P WLED, 40K hours lifespan, Without Driver
Refresh Rate	60Hz
Touch Screen	4-wire Resistive Touch, F/G
Panel Weight	150g (Typical)
Signal Interface	CMOS (1 channel, 6-bit), 40 pins, Connector
Input Voltage	3.3V (Typical, VDD)
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Vibration Level	3.0G (29.4 m/s²)

Key Features

Antiglare surface for reduced reflections
Wide viewing angle performance
Landscape orientation design
Integrated 4-wire resistive touchscreen
White LED backlight with 40,000-hour lifespan
U/D, L/R reverse functionality
Designed for industrial applications

Important Notice: This model (TX14D22VM1BPA) entered mass production in Q4 2009 with last shipment in Q2 2014. The product is currently discontinued. We strongly recommend contacting HITACHI or their authorized agents for the latest production status and specification details. The production status information provided is for reference only and should not be used as the basis for decision making.

Quality Assurance: All our LCD, LED screen, monitor, module, and panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
