PVI 6.2 Inch Automotive LCD Display with 400cd/m2 Brightness and 480x234 Resolution

Name: PVI 6.2 Inch Automotive LCD Display with 400cd/m2 Brightness and 480x234 Resolution
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: PW062XU8
Price: 30.00 USD
Availability: InStock

Brand Name:	PVI
Model Number:	PW062XU8
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 480*234

Brightness:

400cd

Connector:

26PIN

Contrast Ratio:

400:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

tft lcd display

Product Description

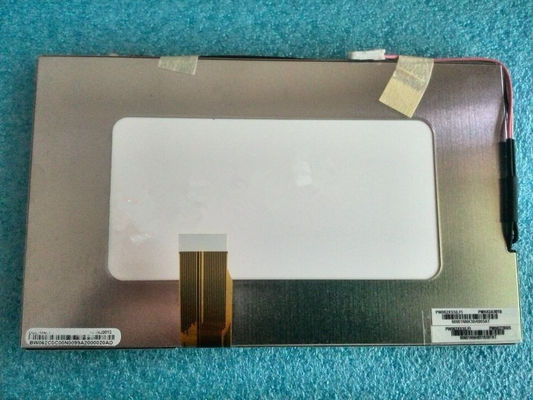

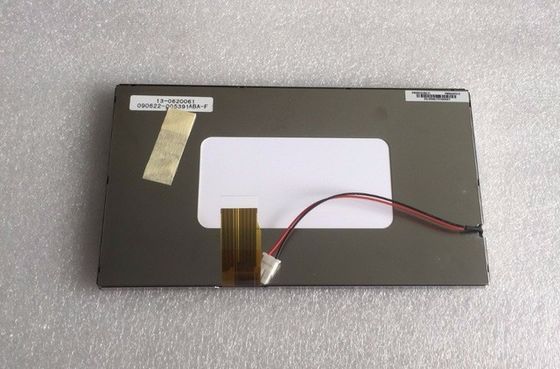

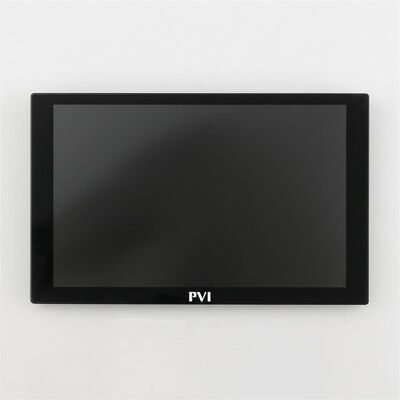

PVI 6.2" Automotive Car LCD Display PW062XU8

Brand PVI

Model PW062XU8

Diagonal Size 6.2 inch

Display Type a-Si TFT-LCD, LCM

Resolution 480(RGB)*234 pixels

Pixel Configuration RGB Vertical Stripe

Brightness 400 cd/m²

Contrast Ratio 400:1

Physical Specifications

Active Area	137.52(H)*77.22(V) mm
Outline Dimensions	155.2(H)*88.2(V) mm
Bezel Area	140.7(H)*80.4(V) mm
Weight	134±10g

Display Performance

Surface Treatment Antiglare

Response Time 15/25 ms (Tr/Td)

Viewing Angle 75/75/50/60 (CR≥10)

Operating Mode TN, Normally White, Transmissive

Color Support Full color

Frame Rate 60Hz

Electrical & Interface

Light Source: WLED [3S8P], 30K hours lifespan, without driver

Touch Panel: Without touch capability

Interface: 26 pins TFT Specific Analog RGB, FPC

Power Supply: 3.3/3.3/5.0/17.0/-12.0V (VCC/VDD1/VDD2/VGH/VGL)

Environmental Specifications

Operating Temperature -30°C to 80°C

Storage Temperature -30°C to 80°C

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment

Brand new condition with 400 cd/m² brightness specifically designed for automotive display applications
