AUO 19" Industrial LCD Display with 600cd/m2 Brightness 1280x1024 Resolution and 50K Hours Working Life

Name: AUO 19" Industrial LCD Display with 600cd/m2 Brightness 1280x1024 Resolution and 50K Hours Working Life
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G190EG02 V0
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G190EG02 V0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*1024

Brightness:

600cd

Connector:

30pin

Contrast Ratio:

2000:1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

AUO 19" Industrial LCD Display for Medical Imaging

High brightness 600 cd/m² industrial LCD panel with original AUO packaging. All display modules undergo comprehensive individual testing prior to shipment.

Technical Specifications

Panel Model G190EG02 V0

Panel Size 19.0 inches

Panel Type a-Si TFT-LCD, LCM

Resolution 1280*1024 (SXGA)

Pixel Format RGB Vertical Stripe

Display Area 376.32*301.056 mm

Brightness 600 cd/m² (Typical)

Contrast Ratio 2000:1 (Typical)

Viewing Angle 89/89/89/89 (CR≥10)

Display Mode MVA, Normally Black

Response Time 15/5 ms (Tr/Td)

Display Colors 16.7M (70% CIE1931)

Backlight WLED, 50K hours

Refresh Rate 60Hz

Input Voltage 5.0V (Typical)

Interface LVDS (2 ch, 8-bit)

Physical Dimensions

Measurement Type	Dimensions
Bezel Opening	380.32 * 305.06 mm
Outline Size	396 * 324 * 21.85 mm
Panel Weight	2.00/2.10 kg (Typical/Maximum)
Surface Treatment	Antiglare, Hard coating (3H)

Environmental Specifications

Operating Temperature 0°C to 50°C

Storage Temperature -20°C to 60°C

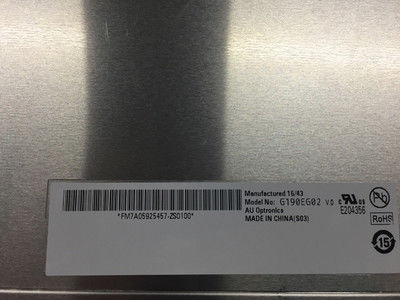

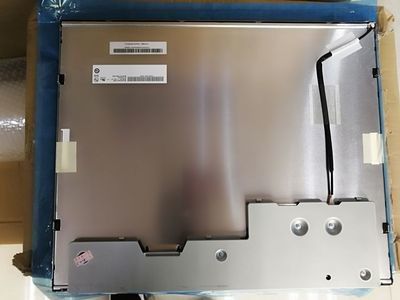

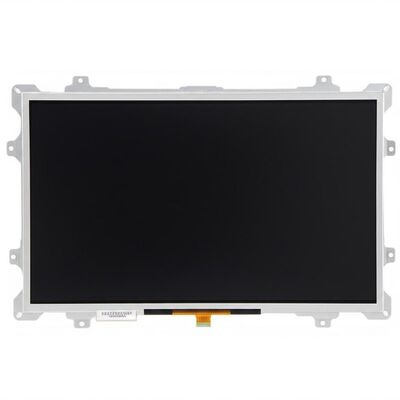

Product Images

Quality Assurance

Original AUO LCD panel with complete packaging

High brightness 600 cd/m² industrial-grade display

Each module undergoes comprehensive individual testing

Ideal for medical imaging and industrial applications
