1280*1024 Pixels 350cd Brightness 30 Pin Industrial LCD Screen High Resolution Display

Name: 1280*1024 Pixels 350cd Brightness 30 Pin Industrial LCD Screen High Resolution Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: G170ETN01.0
Price: 43.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	G170ETN01.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*1024

Brightness:

350cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

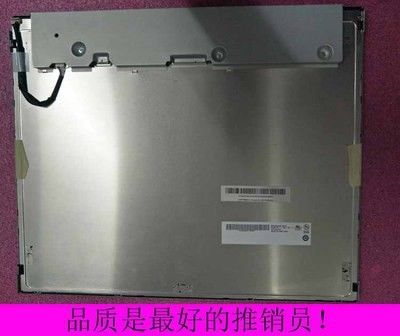

17-inch High Brightness Industrial LCD Display G170ETN01.0

Product Overview

This 17-inch industrial LCD screen features 1280*1024 SXGA resolution with high brightness of 350 cd/m², designed for demanding industrial applications requiring reliable performance and excellent visibility.

Technical Specifications

Brand	AUO	Model	G170ETN01.0
Diagonal Size	17.0 inch	Type	a-Si TFT-LCD, LCM
Pixel Format	1280(RGB)*1024 [SXGA]	Configuration	RGB Vertical Stripe
Active Area	337.92(H)*270.336(V) mm	Outline Dimensions	358.5(H)296.5(V)18(D) mm
Bezel Area	341.6(H)*274.0(V) mm	Surface Treatment	Antiglare, Hard coating (3H)
Luminance	350 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Response Time	3.5/1.5 (Typ.)(Tr/Td)
Support Color	16.7M 72% (CIE1931)	Operating Mode	TN, Normally White, Transmissive
Weight	1.30Kgs (Typ.)	Light Source	WLED, 30K hours, With LED Driver
Frame Rate	60Hz	Touch Panel	Without

Interface & Power Specifications

Interface Type: 30 pins LVDS (2 ch, 8-bit), Connector
Power Supply: 5.0V (Typ.)
Operating Temperature: 0 ~ 50 °C
Storage Temperature: -20 ~ 60 °C

Key Features:
• 350cd/m² high brightness industrial LCD display
• All LCD/LED screen monitor module panel products undergo full individual testing before shipment

This industrial-grade display is engineered for reliability and performance in demanding environments, with comprehensive quality assurance testing for each unit.
