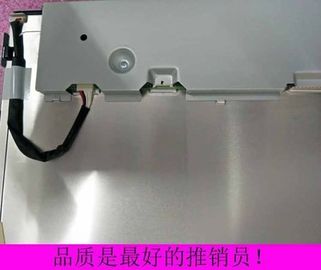

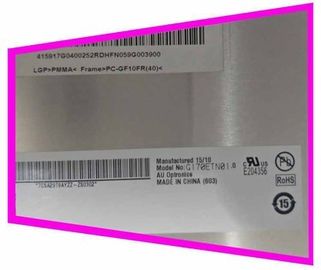

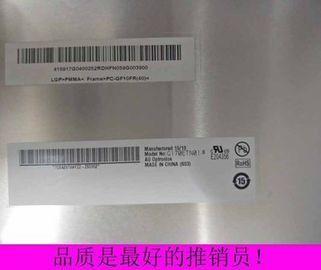

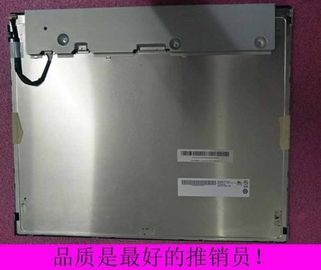

1280*1024 Pixels 30 Pin Industrial Lcd Screen , High Brightness Lcd Display G170ETN01.0

Brand Name:	AUO
Model Number:	G170ETN01.0
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

Style:

Wide Screen High Resolution 1280*1024

Brightness:

350cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

30K Hours

Supply Ability:

3000pcs per week

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

Brand
Diagonal Size
Pixel Format
Active Area
Bezel Area
Luminance
View Direction
Viewing Angle
Support Color
Weight
Frame Rate

AUO

17.0 inch

1280(RGB)×1024 [SXGA]

337.92(H)×270.336(V) mm

341.6(H)×274.0(V) mm

350 cd/m² (Typ.)

85/85/80/80 (Typ.)(CR≥10)

16.7M 72% (CIE1931)

1.30Kgs (Typ.)

60Hz

Model

Type

Configuration

Outline Dim.

Treatment

Contrast Ratio

Response Time

Operating Mode

Light Source

Designed For

Touch Panel

G170ETN01.0

a-Si TFT-LCD , LCM

RGB Vertical Stripe

358.5(H)×296.5(V) ×18(D) mm

Antiglare, Hard coating (3H)

1000:1 (Typ.) (TM)

3.5/1.5 (Typ.)(Tr/Td)

TN, Normally White, Transmissive

WLED , 30K hours , With LED Driver

Without

Interface Type	30 pins LVDS (2 ch, 8-bit) , Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

1280*1024 Pixels 30 Pin Industrial Lcd Screen , High Brightness Lcd Display G170ETN01.0 0

It's 350cd/m2 high brightness industrial lcd

All our LCD LED screen monitor module panel products will be full test one by one before sending .
