CMO 21.3 Inch Medical Imaging Industrial LCD Display with 2560x2048 Pixels and 1000cd/m2 Brightness

Brand Name:	CMO
Model Number:	R213T1-L01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262 Colors

Model:

WLED

Style:

Wide Screen High Resolution 2560*2048

Brightness:

1000cd

Connector:

73pin

Contrast Ratio:

700:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

industrial computer monitor

industrial touch screen display

Product Description

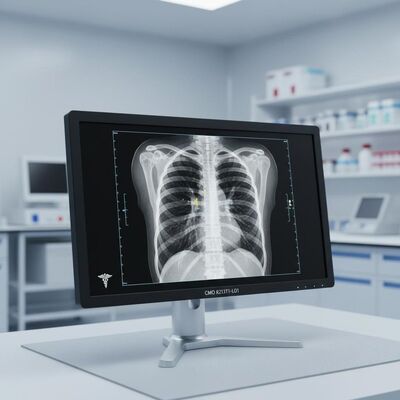

CMO 21.3" Medical Imaging Industrial LCD Display

Product Overview

High-performance 21.3-inch industrial LCD display module designed specifically for medical imaging applications, featuring exceptional resolution and brightness for critical diagnostic environments.

Key Specifications

Parameter	Specification
Model	R213T1-L01
Diagonal Size	21.3 inch
Pixel Format	2560(LCR)*2048 [QSXGA]
Active Area	422.4(H)*337.92(V) mm
Bezel Area	426.4(H)*344.5(V) mm
Luminance	1000 cd/m² (Typical)
Contrast Ratio	700:1 (Typical)
Viewing Angle	85/85/85/85 (Typical, CR≥10)
Response Time	25/25 (Typical, Tr/Td)
Weight	2.97Kgs (Typical)

Technical Features

Display Type: a-Si TFT-LCD, LCM
Operating Mode: DD-IPS, Normally Black, Transmissive
Configuration: LCR Vertical Stripe
Support Color: Grayscale
Frame Rate: 60Hz
Light Source: CCFL [12 pcs], 50K hours, With Inverter
Interface Type: 73 pins LVDS (4 ch, 8-bit), Connector
Power Supply: 12.0V (Typical)
Outline Dimensions: 459.8(H)*375.3(V)*49(D) mm

Environmental Specifications

Parameter	Range
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Product Images

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
