DV215FHM-NN0 Industrial Panel PC Touch Screen For BOE 21.5 Inch Vending Machine

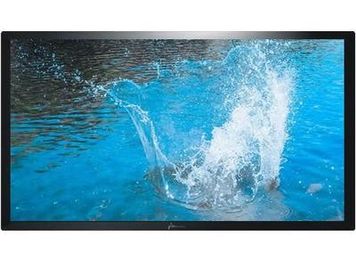

Large Image : DV215FHM-NN0 Industrial Panel PC Touch Screen For BOE 21.5 Inch Vending Machine

Product Details:

Place of Origin:	KOREA
Brand Name:	BOE
Certification:	Rohs,CE,FCC
Model Number:	DV215FHM-NN0

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Delivery Time:	4-5 working day
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Contact Now

Detailed Product Description

Quality:	Brand New Original	Package:	Original Industrial Packing
Material:	Glass Oled	Color:	16.7M Colors
Model:	WLED	Style:	Wide Screen High Resolution 1920*1080
Brightness:	500cd	Connector:	30pin
Contrast Ratio:	1000:1
High Light:	industrial computer monitor , industrial touch screen display

Manufacturer
BOE
Model Name
DV215FHM-NN0

Screen Size
21.5 inch
Screen TypeLCM, a-Si TFT-LCD

Pixel Number1920(RGB)×1080 (FHD)
ArrangementRGB Vertical Stripe

Active Area(mm)476.064 × 267.786 (H×V)
Outline(mm)495.6 × 292.2 (H×V×D)

Bezel Area(mm)479.8 × 271.2 (H×V)
TreatmentAntiglare, Hard coating (3H)

Luminance500 cd/m² (Typ.)
Contrast Ratio1000 : 1 (Typ.) (TM)

Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Response14 (Typ.)(G to G) ms

Good View atSymmetry
Work ModeADS, Normally Black, Transmissive

Color Depth16.7M 73% (CIE1931)
Backlight3 strings WLED , 30K hours , No Driver

Mass1.97Kgs (Typ.)
Used for

Refresh Rate75Hz
TouchscreenWithout

Signal Type
LVDS (2 ch, 8-bit) , Connector , 30 pins

Voltage Supply
5.0V (Typ.)

Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

All our LCD LED screen monitor module panel products will be full test one by one before sending .
