BOE 18.5 Inch Industrial LCD Display with 1366x768 Pixels and 250cd/m² Brightness DV185WHM-NM1

Name: BOE 18.5 Inch Industrial LCD Display with 1366x768 Pixels and 250cd/m² Brightness DV185WHM-NM1
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV185WHM-NM1
Price: 43.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV185WHM-NM1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1366*768

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Packaging Details:

Industrial packing

Highlight:

industrial computer monitor

industrial touch screen display

Product Description

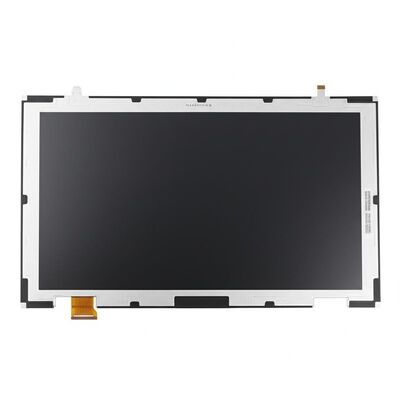

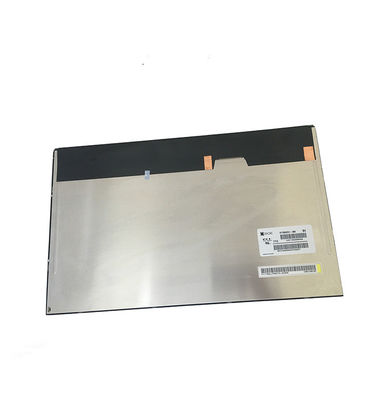

BOE 18.5 Inch Medical Industrial LCD Screen

Product Overview

Panel Model: DV185WHM-NM1

Panel Size: 18.5"

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1366*768 (WXGA)

Brightness: 250 cd/m²

Contrast Ratio: 1000:1

Technical Specifications

Specification	Details
Pixel Format	RGB Vertical Stripe
Display Area	409.8*230.4 mm
Bezel Opening	413.4*234.0 mm
Outline Size	430.4254.611.4 mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Viewing Angle	89/89/89/89 (CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Response Time	14 ms (G to G)
Display Colors	16.7M 75% (CIE1931)
Backlight	6S4P WLED, 30K hours, Without Driver
Refresh Rate	60Hz
Touch Screen	Without
Panel Weight	1.30 kg
Signal Interface	LVDS (1 ch, 8-bit), 30 pins, Connector
Input Voltage	5.0V
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Application

Medical and industrial display applications requiring high reliability and performance.

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
