Sharp LQ201U1LW32 Industrial LCD Display 20.1 Inch Medical Imaging Monitor with 1600*1200 Pixels and 30 Pin Connector

Name: Sharp LQ201U1LW32 Industrial LCD Display 20.1 Inch Medical Imaging Monitor with 1600*1200 Pixels and 30 Pin Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ201U1LW32
Price: 43.00 USD
Availability: InStock

Brand Name:	sharp
Model Number:	LQ201U1LW32
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1600*1200

Style:

30PIN IPS

Brightness:

260 CD/M2

Color:

16.7M

Contrast Ratio:

1400 :1

Packaging Details:

Industrial packing

Highlight:

industrial panel pc touch screen

industrial computer monitor

Product Description

LQ201U1LW32 Industrial LCD Display

High-performance 20.1-inch medical imaging monitor with 1600*1200 resolution, designed for industrial and medical applications requiring precise visual clarity.

Technical Specifications

Manufacturer: Sharp

Model: LQ201U1LW32

Screen Size: 20.1 inch

Screen Type: LCM, a-Si TFT-LCD

Resolution: 1600*1200 (UXGA)

Pixel Arrangement: RGB Vertical Stripe

Active Area: 408 * 306 mm (H*V)

Outline Dimensions: 436 * 335 * 20.4 mm (H*V*D)

Bezel Area: 413.2 * 311.2 mm (H*V)

Surface Treatment: Antiglare, Hard coating (2H)

Brightness: 260 cd/m² (Typ.)

Contrast Ratio: 1400:1 (Typ.)

Viewing Angle: 85/85/85/85 (CR≥10)

Response Time: 30 ms (Tr+Td)

Display Mode: VA, Normally Black, Transmissive

Color Depth: 16.7M colors, 71% (CIE1931)

Backlight: WLED, 50K hours, With LED Driver

Weight: 2.40 kg (Max.)

Refresh Rate: 60Hz

Touchscreen: Without

Signal Type: LVDS (2 ch, 8-bit), 30-pin Connector

Operating Voltage: 12.0V (Typ.)

Operating Temperature: 0°C to 50°C

Storage Temperature: -25°C to 60°C

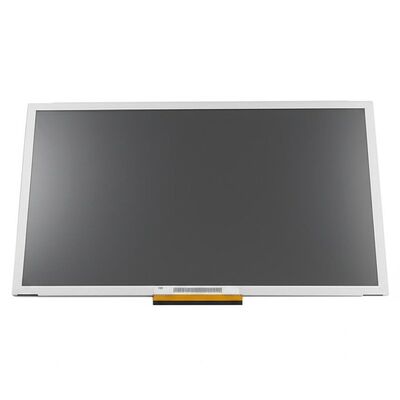

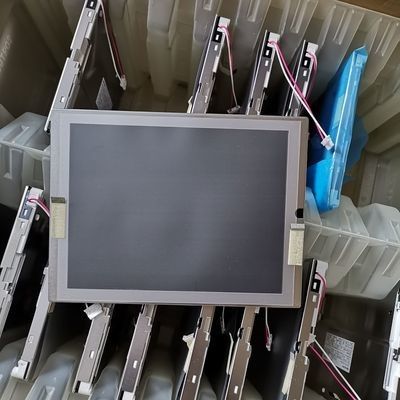

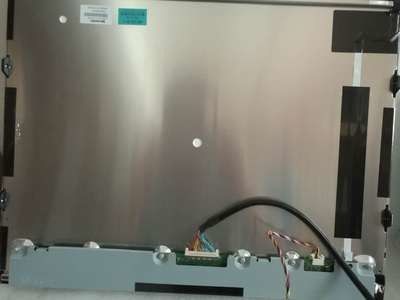

Product Images

Quality Assurance: All original products undergo comprehensive testing before shipment to ensure optimal performance.

Detailed Documentation: Complete specification details available upon request. Please contact us for technical datasheets and additional product information.
