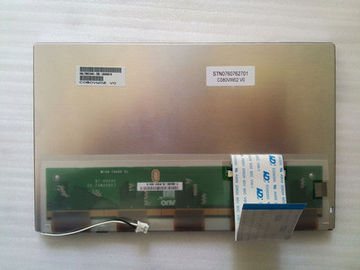

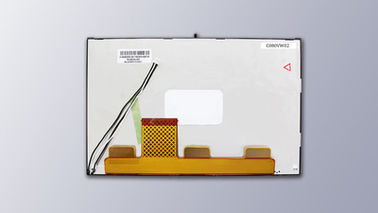

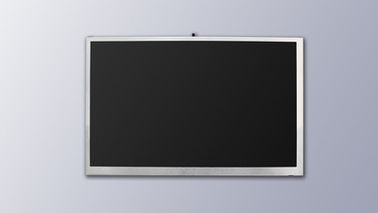

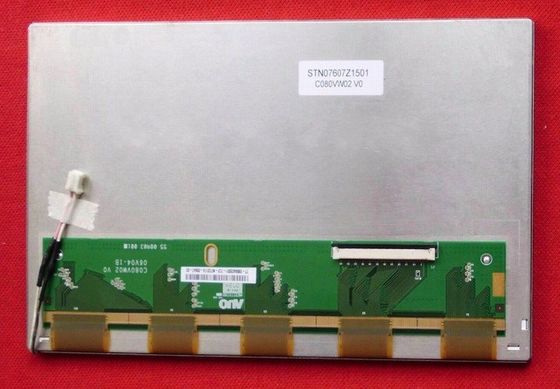

C080VW02 V0 Lcd Display Screen , Car Video Screen Monitor AU Optronics 8'' 60 Pin

Brand Name:	auo
Model Number:	C080VW02 V0
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

480*800

Style:

60PIN IPS

Brightness:

400 CD/M2

Color:

Contrast Ratio:

800 :1

Working Life:

10k Hours Without Driver

Supply Ability:

3000pcs per week

Highlight:

lcd display screen

raspberry pi 7 touchscreen display

Product Description

Panel Brand

AUO

Panel Model

C080VW02 V0

Panel Size

8.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

800(RGB)×480 , WVGA

Pixel Format

RGB Vertical Stripe

Display Area

175.2(W)×105.12(H) mm

Bezel Opening

177.0(W)×106.92(H) mm

Outline Size

186.5(W)×117.22(H) mm

Surface

Antiglare

Brightness

400 cd/m² (Min.)

Contrast Ratio

300:1 (Typ.) (TM)

Viewing Angle

60/60/40/60 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

6 o'clock

Response Time

15/20 (Typ.)(Tr/Td)

Display Colors

262K

Lamp Type

WLED , 10K hours , Without Driver

Frequency

60Hz

Touch Screen

Without

Panel Weight

180±18g

Application

Signal Interface

Parallel RGB (1 ch, 6-bit) , 60 pins , Connector

Input Voltage

3.3/9.8/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)

Environment

Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)

All Origianl product will be send to customer after full test one by one.

Spec details can be send to you via email,please contact us.
