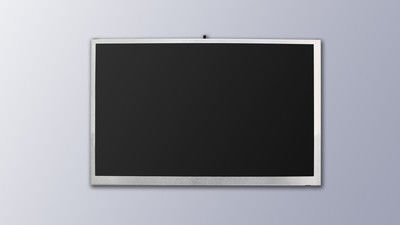

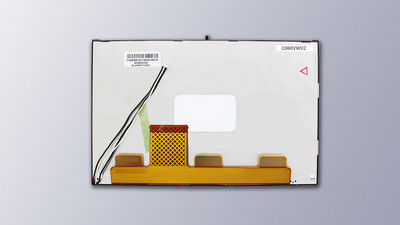

8'' Car LCD Display Screen with 480*800 Resolution and 400 CD/M2 Brightness by AU Optronics

Name: 8'' Car LCD Display Screen with 480*800 Resolution and 400 CD/M2 Brightness by AU Optronics
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: C080VW02 V0
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	C080VW02 V0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

480*800

Style:

60PIN IPS

Brightness:

400 CD/M2

Color:

262k

Contrast Ratio:

800 :1

Working Life:

10k Hours Without Driver

Packaging Details:

Industrial packing

Highlight:

lcd display screen

raspberry pi 7 touchscreen display

Product Description

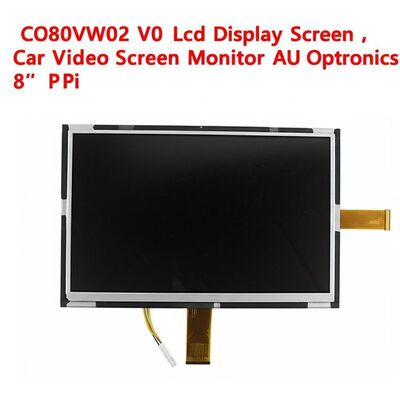

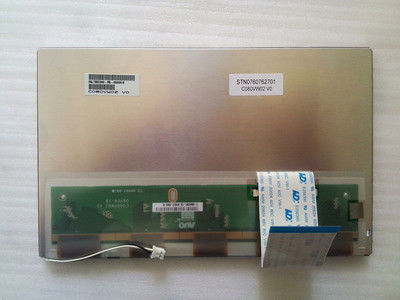

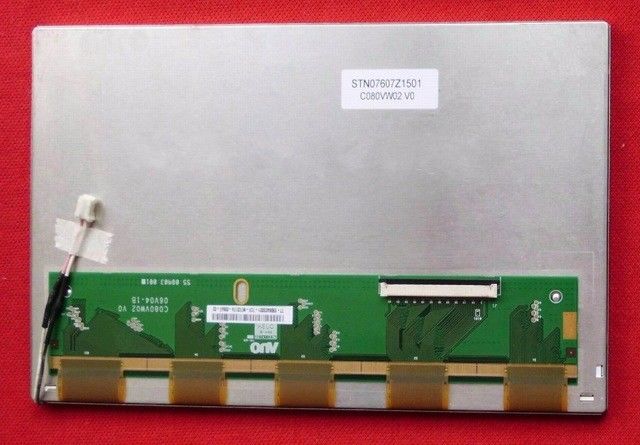

C080VW02 V0 LCD Display Screen, Car Video Screen Monitor AU Optronics 8" 60 Pin

Product Specifications

Panel Brand AUO

Panel Model C080VW02 V0

Panel Size 8.0"

Panel Type a-Si TFT-LCD, LCM

Resolution 800(RGB)*480, WVGA

Pixel Format RGB Vertical Stripe

Display Area 175.2(W)*105.12(H) mm

Bezel Opening 177.0(W)*106.92(H) mm

Outline Size 186.5(W)*117.22(H) mm

Surface Antiglare

Brightness 400 cd/m² (Min.)

Contrast Ratio 300:1 (Typ.) (TM)

Viewing Angle 60/60/40/60 (Typ.)(CR≥10)

Display Mode TN, Normally White, Transmissive

Best View 6 o'clock

Response Time 15/20 (Typ.)(Tr/Td)

Display Colors 262K

Lamp Type WLED, 10K hours, Without Driver

Frequency 60Hz

Touch Screen Without

Panel Weight 180±18g

Signal Interface Parallel RGB (1 ch, 6-bit), 60 pins, Connector

Input Voltage 3.3/9.8/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)

Environmental Specifications

Operating Temperature -30 ~ 85 °C

Storage Temperature -40 ~ 85 °C

Vibration Level 2.9G (28.4 m/s²)

All original products will be sent to customers after comprehensive testing one by one.

Detailed specifications can be provided via email. Please contact us for complete technical documentation.
