MITSUBISHI 12.1 Inch Industrial LCD Panel with 800*600 Pixels Resolution and 500cd/m2 Brightness

MITSUBISHI 12.1 Inch Industrial LCD Panel with 800*600 Pixels Resolution and 500cd/m2 Brightness

Brand Name: MITSUBISHI
Model Number: AC121SA02
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
800*600
Style:
LCD 20PIN
Brightness:
500 CD/M2
Color:
262K
Contrast Ratio:
800 :1
Packaging Details:
Industrial packing
Highlight:

industrial panel pc touch screen

,

industrial computer monitor

Product Description
Product Overview

MITSUBISHI 12.1 Inch Industrial LCD Panel AC121SA02 featuring 800*600 SVGA resolution, 500 cd/m² brightness, and 20-pin LVDS interface for reliable industrial applications.

Technical Specifications
Brand Mitsubishi
Model AC121SA02
Diagonal Size 12.1 inch
Display Type a-Si TFT-LCD, LCM
Resolution 800*600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Active Area 246*184.5 mm
Outline Dimensions 260.5*203*10 mm
Bezel Area 249.0*187.5 mm
Surface Treatment Antiglare, Hard coating (3H)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.)
View Direction 6 o'clock
Response Time 4/12 ms (Tr/Td)
Viewing Angle 80/80/60/80 (CR≥10)
Operating Mode TN, Normally White, Transmissive
Color Support 262K/16.7M, 72% (CIE1931)
Light Source WLED, 100K hours, With LED Driver
Weight 580g (Typ.)
Frame Rate 60Hz
Touch Panel Without
Interface Type 20 pins LVDS (1 ch, 6/8-bit), Connector
Power Supply 3.3V (Typ.)
Environmental Specifications
Operating Temperature -30°C to 80°C
Storage Temperature -30°C to 80°C
Product Images

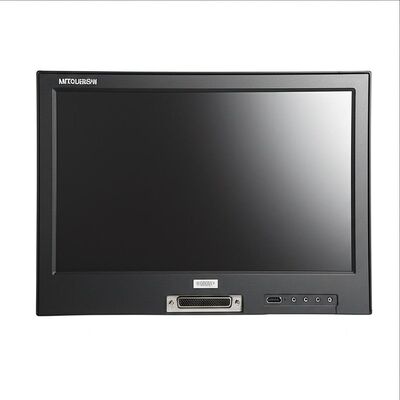

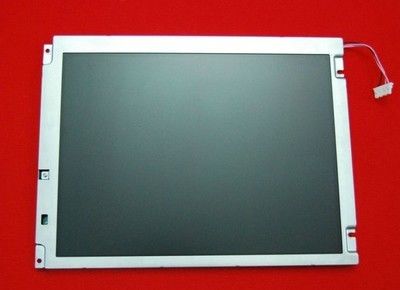

MITSUBISHI 12.1 Inch Industrial LCD Panel with 800*600 Pixels Resolution and 500cd/m2 Brightness 0 MITSUBISHI 12.1 Inch Industrial LCD Panel with 800*600 Pixels Resolution and 500cd/m2 Brightness 1
Quality Assurance
All original products undergo comprehensive testing before shipment
Detailed specification documents available upon request via email
