| Brand Name: | BOE |
| Model Number: | DV240FBM-NB0 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

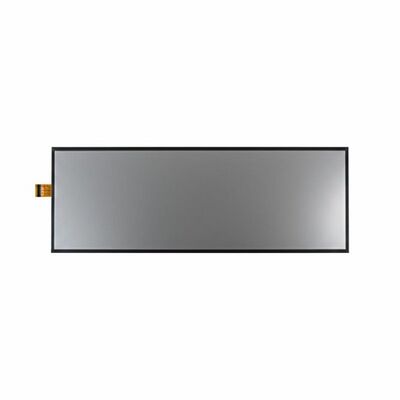

BOE stretch lcd screen 24" DV240FBM-NB0 stretched bar lcd 300CCD/M2 1920*360ixels for advisement player 16.7M colors
Manufacturer
BOE
Model Name
DV240FBM-NB0
Screen Size
24.0 inch (1/3 cut of 27.0")
Screen Type
LCM , a-Si TFT-LCD
Pixel Number
1920(RGB)×360
Arrangement
RGB Vertical Stripe
Active Area(mm)
597.888 × 112.104 (H×V)
Outline(mm)
612.7 × 132.1 (H×V×D)
Bezel Area(mm)
-
Treatment
Antiglare (Haze 25%)
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1200 : 1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response
30 (Typ.)(Tr+Td) ms
Good View at
Symmetry
Work Mode
ADS, Normally Black, Transmissive
Color Depth
16.7M 72% (CIE1931)
Backlight
WLED , 30K hours , No Driver
Mass
1.21Kgs (Typ.)
Used for
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , Connector , 30 pins
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
