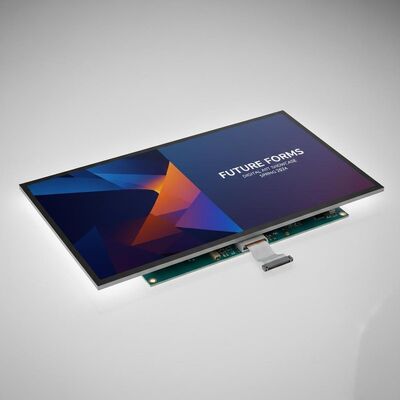

28 Inch Stretched LCD Display with 700 cd/m² Brightness 1920*360 Pixels and 51Pin Connector for Digital Signage

Name: 28 Inch Stretched LCD Display with 700 cd/m² Brightness 1920*360 Pixels and 51Pin Connector for Digital Signage
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV280FBM-NB1
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV280FBM-NB1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

WLED,LCD

Style:

Wide Screen High Resolution 1920*1080pixels

Resolution:

3840*720

Brightness:

700CCD/M2

Connector:

51Pin

Working Life:

50k Hours

Contrast Ratio:

1200:1

Packaging Details:

Industrial packing

Highlight:

bar type display

stretch monitor display

Product Description

700CCD / M2 Stretched LCD Display

BOE 28" DV280FBM-NB1 stretch LCD display with 1920*360 resolution, designed for digital signage and advertisement players. Features 16.7 million colors and high brightness for vibrant visual performance.

Product Specifications

Specification	Details
Panel Brand	BOE
Panel Size	28.0 inch (1/3 cut of 31.5")
Resolution	1920(RGB)*360
Display Area	699.84(W)*131.22(H) mm
Outline Size	732(W)*165(H) mm
Brightness	700 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View	Symmetry
Display Colors	16.7M 72% (CIE1931)
Frequency	60Hz
Weight	2.40Kgs (Typ.)
Panel Model	DV280FBM-NB1
Panel Type	a-Si TFT-LCD, LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	704(W)*136(H) mm
Contrast Ratio	1200:1 (Typ.) (TM)
Display Mode	ADS, Normally Black, Transmissive
Response Time	8ms (Typ.)(G to G)
Lamp Type	WLED, 30K hours, Without Driver
Touch Screen	Without
Application	Digital Signage
Signal Interface	LVDS (1 ch, 8-bit), 51 pins, Connector
Input Voltage	12.0V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

Key Features

Stretched bar LCD display ideal for digital advertising
High brightness of 700 cd/m² for clear visibility
Wide viewing angles (89/89/89/89)
16.7 million colors for vibrant image quality
LVDS interface with connector
WLED backlight with 30,000 hours lifespan

Product Images

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure quality and performance.
