AUO 7 Inch Industrial LCD Display with 800*480 Pixels Resolution and 400cd/m2 Brightness

Name: AUO 7 Inch Industrial LCD Display with 800*480 Pixels Resolution and 400cd/m2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: PM070WL3
Price: 43.00 USD
Availability: InStock

Brand Name:	PVI
Model Number:	PM070WL3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

400ccd/m2

Resolution:

800*480pixels

Contrast Ratio:

400:1

Color:

262K

Working Life:

30k Hours

Connector:

20P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

industrial touch screen display

industrial computer monitor

Product Description

AUO 7-Inch Industrial LCD Display PM070WL3

AUO industrial control LCD display monitor with 7-inch diagonal size, 800*480 WVGA resolution, 400 cd/m² brightness, and 20-pin LVDS interface. Ideal for industrial applications requiring reliable performance in demanding environments.

Technical Specifications

Brand	PVI
Model	PM070WL3
Diagonal Size	7.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB) * 480 [WVGA]
Active Area	152.4(H) * 91.44(V) mm
Outline Dimensions	166.3(H) * 105.3(V) * 11(D) mm
Bezel Area	156.0(H) * 95.0(V) mm
Luminance	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.)
Viewing Angle	60/60/40/55 (Typ.)(CR ≥10)
Response Time	15/25 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED [3S11P], 30K hours, W/O Driver
Interface Type	20 pins LVDS (1 ch, 6-bit), Connector
Power Supply	3.3V (Typ.)
Weight	265 ±10g
Touch Panel	Without
Operating Temperature	-30°C to 80°C
Storage Temperature	-40°C to 85°C

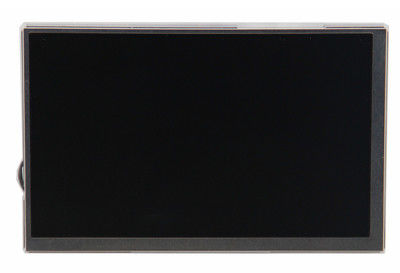

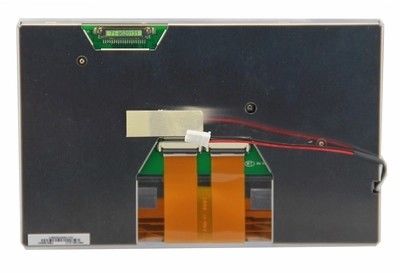

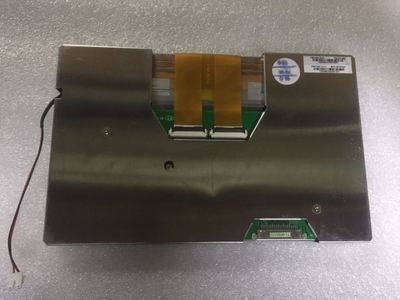

Product Images

Quality Assurance

All original products undergo comprehensive testing before shipment
Each unit is tested individually to ensure optimal performance

Detailed specification documents available upon request. Please contact us for complete technical documentation via email.
