| Brand Name: | PVI |
| Model Number: | PM070WL3 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

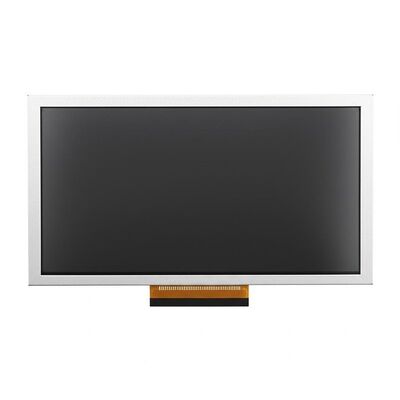

AUO industrial control lcd 7inch LCD display monitor PM070WL3 20PIN 800*480pixels 400CCD/M2 256K colors
Brand
PVI
Model
PM070WL3
Diagonal Size
7.0 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
800(RGB)×480 [WVGA]
Configuration
RGB Vertical Stripe
Active Area
152.4(H)×91.44(V) mm
Outline Dim.
166.3(H)×105.3(V) ×11(D) mm
Bezel Area
156.0(H)×95.0(V) mm
Treatment
Antiglare
Luminance
400 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (TM)
View Direction
6 o'clock
Response Time
15/25 (Typ.)(Tr/Td)
Viewing Angle
60/60/40/55 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K
Light Source
WLED [3S11P] , 30K hours , W/O Driver
Weight
265±10g
Designed For
Frame Rate
-
Touch Panel
Without
Interface Type
20 pins LVDS (1 ch, 6-bit) , Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C
|
|
